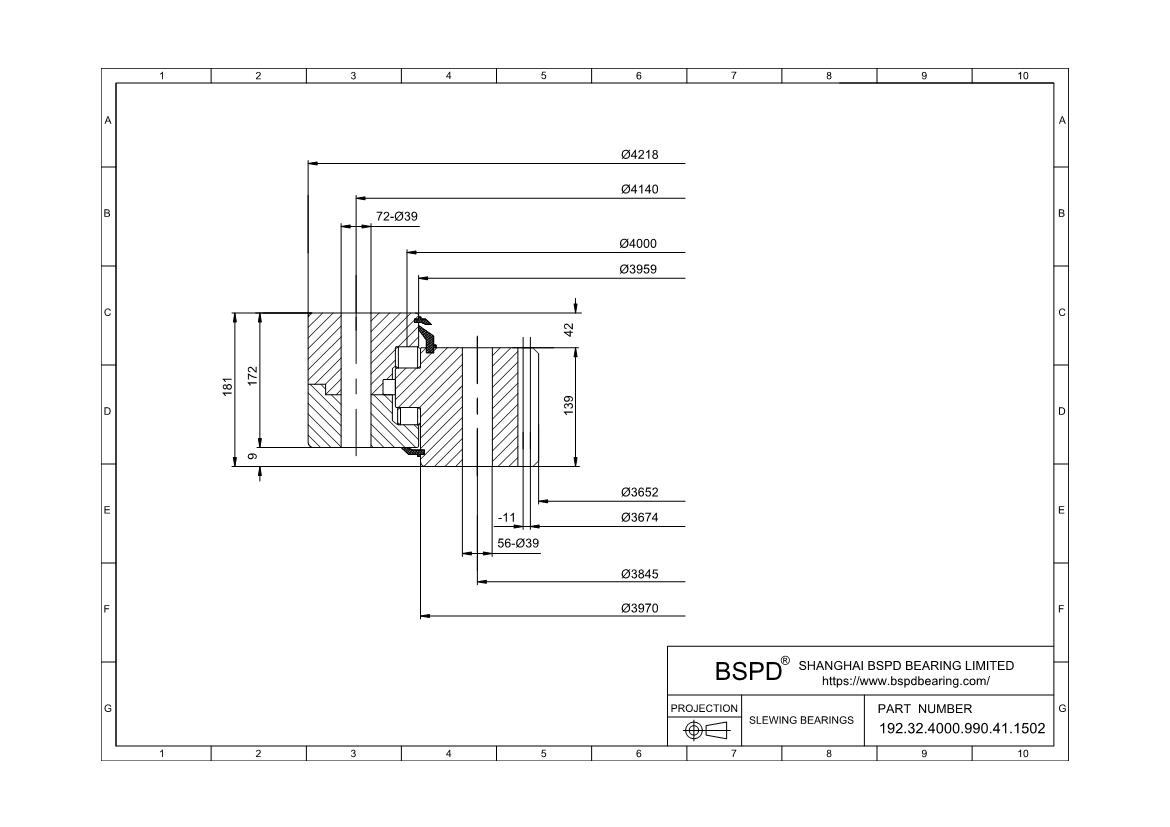

192.32.4000.990.41.1502
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 3652 mm； Outer Diameter: 4218 mm； Width (Thickness): 181 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 192.32.4000.990.41.1502 |
| Series | Series 19 |
| Gear | Internal gear |
| Type | Roller |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 3652 mm |
| Outside Diameter Of Outer Ring | 3970 mm |
| Internal Diameter On Outer Ring | 4218 mm |
| Height Of Overall Bearing Assembly | 181 mm |
| Height Of Inner Ring | 172 mm |
| Height Of Outer Ring | 139 mm |
| External Diameter On Inner Ring | 3959 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 3664 Kg |
| Bolt Circle In Inner Ring | 3845 mm |
| Bolt Circle In Outer Ring | 4140 mm |
| Size Of Hole In Inner Ring | 39 mm |
| Size Of Hole In Outer Ring | 39 mm |
| Number Holes In Inner Ring | 72 |
| Number Holes In Outer Ring | 72 |
| Diametral Pitch | 3674 mm |
| Number Of Gear Teeth | 167 |
| Permissible Tooth Forces T | 265.9 |
| Max Gear Tooth Load Fz | 531.8 |
| Diameter Of Bearing Raceway | 4000 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG2 |
| x·m | -11 |
| K | 42 mm |
| F19 | 3970 mm |
| n1 | 9 |
| Bolt Size (M) | 36 mm |
| M | 22 |
| F | 139 mm |
| RoHS | Compliant |
