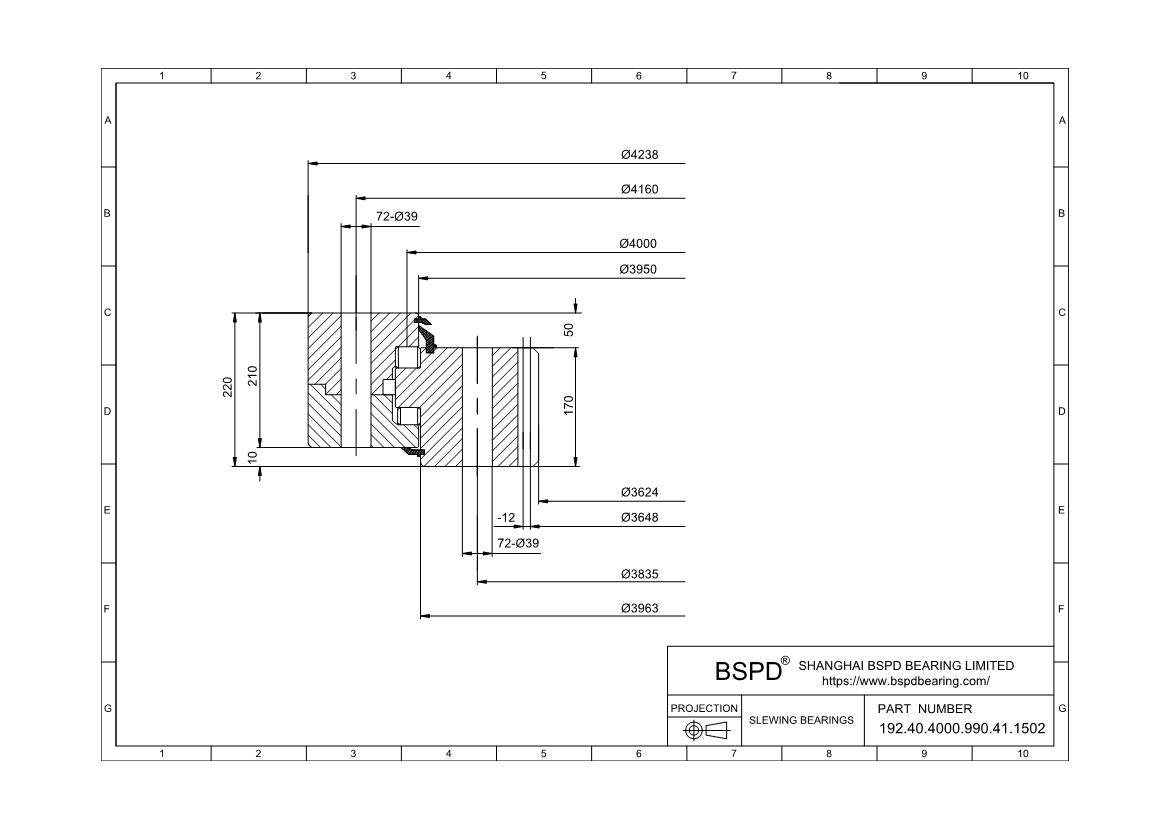

192.40.4000.990.41.1502
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 3624 mm； Outer Diameter: 4238 mm； Width (Thickness): 220 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 192.40.4000.990.41.1502 |
| Series | Series 19 |
| Gear | Internal gear |
| Type | Roller |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 3624 mm |
| Outside Diameter Of Outer Ring | 3963 mm |
| Internal Diameter On Outer Ring | 4238 mm |
| Height Of Overall Bearing Assembly | 220 mm |
| Height Of Inner Ring | 210 mm |
| Height Of Outer Ring | 170 mm |
| External Diameter On Inner Ring | 3950 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 4810 Kg |
| Bolt Circle In Inner Ring | 3835 mm |
| Bolt Circle In Outer Ring | 4160 mm |
| Size Of Hole In Inner Ring | 39 mm |
| Size Of Hole In Outer Ring | 39 mm |
| Number Holes In Inner Ring | 72 |
| Number Holes In Outer Ring | 72 |
| Diametral Pitch | 3648 mm |
| Number Of Gear Teeth | 152 |
| Permissible Tooth Forces T | 354.8 |
| Max Gear Tooth Load Fz | 709.6 |
| Diameter Of Bearing Raceway | 4000 mm |
| Distance Between Bottom Outer Ring Inner Ring | 10 mm |
| Correspond | FIG2 |
| x·m | -12 |
| K | 50 mm |
| F19 | 3963 mm |
| n1 | 9 |
| Bolt Size (M) | 36 mm |
| M | 24 |
| F | 170 mm |
| RoHS | Compliant |
