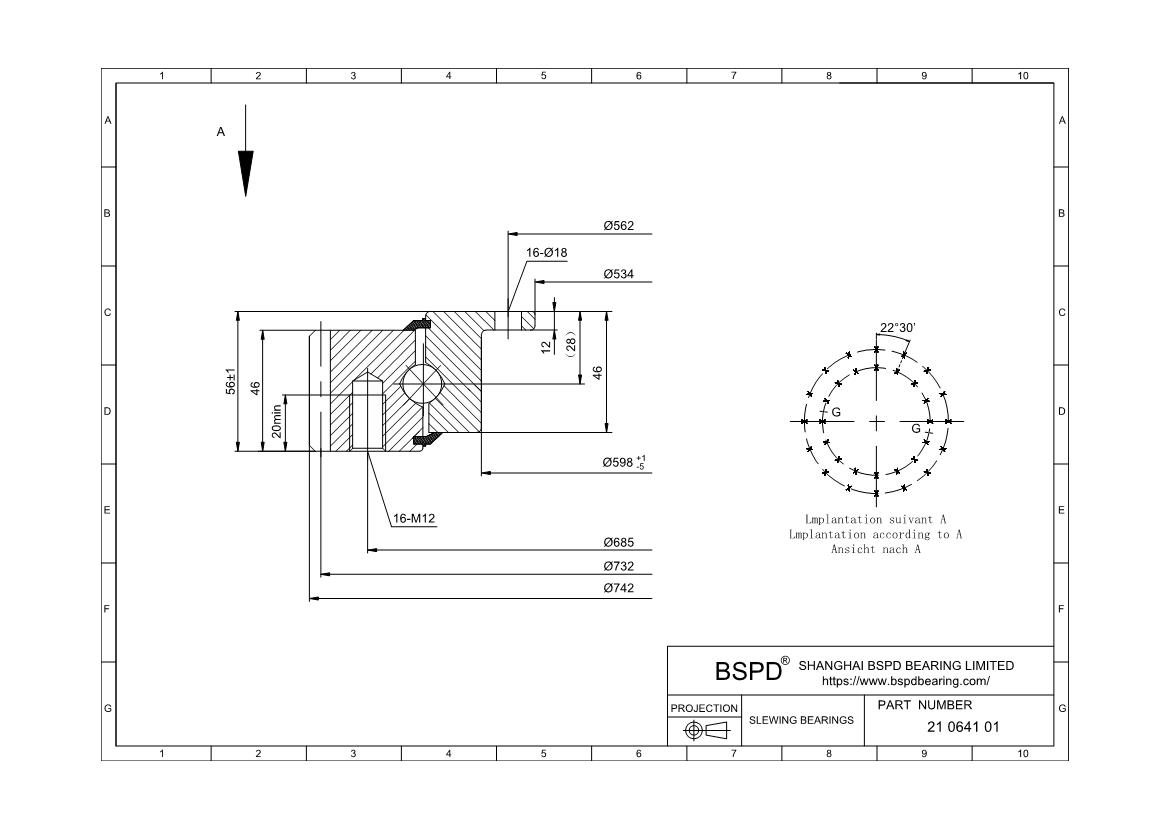

21 0641 01 Metric Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 534.0 mm; Outer Diameter: 742.0 mm; Width (Thickness): 56 mm;

21 0641 01
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number 21 0641 01
Gear External gear
Geometry
External Diameter (DR) 742
Internal Diameter (di) 534
Height(H) 56
Weight(kg) 52
Gear Data
Pitch Diameter of Gear (D2) 732
Module(m) 6
Number of teeth(z) 122
Pressure Angle of Gear Teeth (α) 20
Tooth Form Droite
Mounting Holes
Bolt Circle in Outer Ring (Lo) 685
Number Holes in Outer Ring (no) 16
Bolt Circle in Inner Ring (Li) 562
Number Holes in Inner Ring (ni) 16
MEASUREMENTS IN MILLIMETERS
MAXIMUM DEFLECTION
MAXIMUM MEASUREMENT IN 1 POINT
21 0641 01
