230.20.0700.013 Type 21/850.0 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 634 mm; Outer Diameter: 848 mm; Width (Thickness): 56 mm;

230.20.0700.013 Type 21/850.0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number230.20.0700.013 Type 21/850.0
SeriesSeries 23 25 28
GearWithout gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring634 mm
Outside Diameter Of Outer Ring848 mm
Internal Diameter On Inner Ring705 mm
Internal Diameter On Outer Ring745.5 mm
Height Of Overall Bearing Assembly56 mm
External Diameter On Inner Ring742.5 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly42.8 Kg
Bolt Circle In Inner Ring662 mm
Bolt Circle In Outer Ring820 mm
Size Of Hole In Inner Ring18 mm
Size Of Hole In Outer Ring18 mm
Diameter Of Bearing Raceway744 mm
Distance Between Bottom Outer Ring Inner Ring10.5 mm

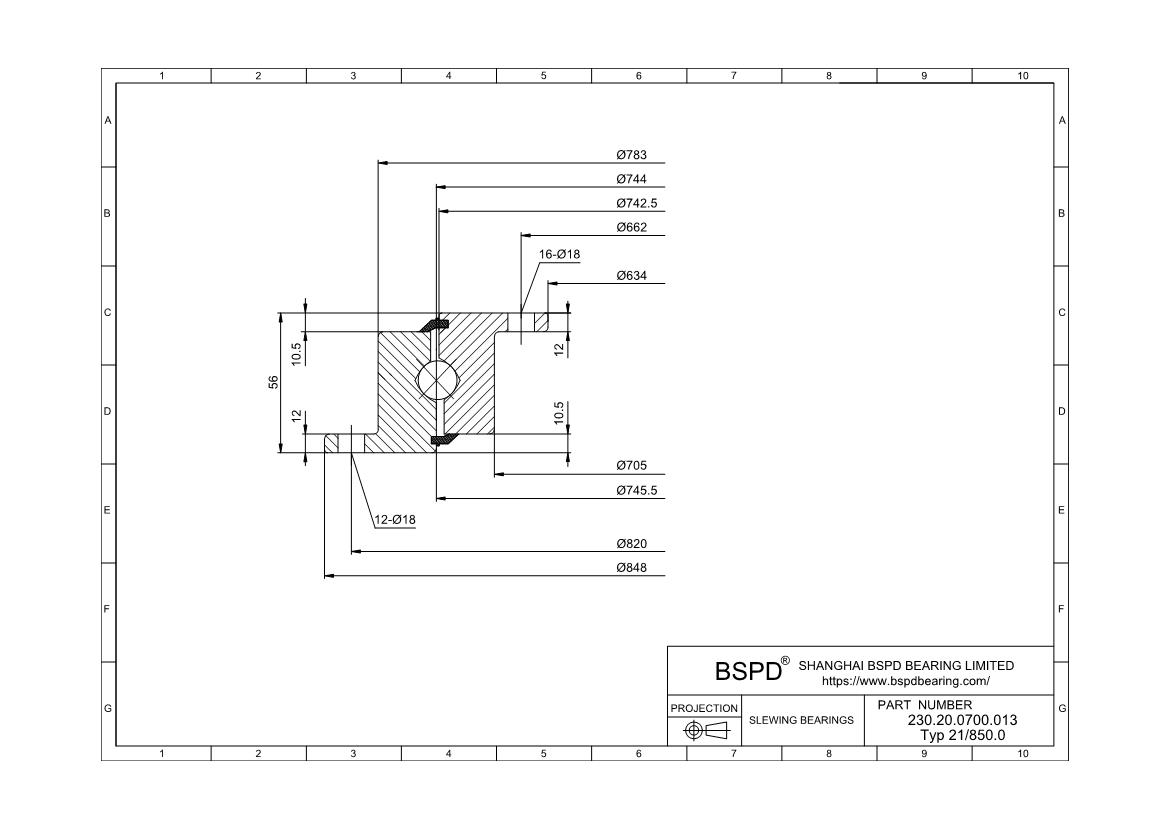

CorrespondFIG5
K10.5 mm
n14
RoHSCompliant
230.20.0700.013 Type 21/850.0
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Slewing Bearings 230.20.0700.013 Type 21/850.0 ? Metric Size Slewing Rings (2) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
