230.21.0575.013 Type 21/650.0 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 435 mm; Outer Diameter: 647 mm; Width (Thickness): 56 mm;

230.21.0575.013 Type 21/650.0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number230.21.0575.013 Type 21/650.0
SeriesSeries 23 25 28
GearWithout gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring435 mm
Outside Diameter Of Outer Ring647 mm
Internal Diameter On Inner Ring505 mm
Internal Diameter On Outer Ring545.5 mm
Height Of Overall Bearing Assembly56 mm
External Diameter On Inner Ring542.5 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly31.0 Kg
Bolt Circle In Inner Ring462 mm
Bolt Circle In Outer Ring620 mm
Size Of Hole In Inner Ring18 mm
Size Of Hole In Outer Ring18 mm
Diameter Of Bearing Raceway544 mm
Distance Between Bottom Outer Ring Inner Ring10.5 mm

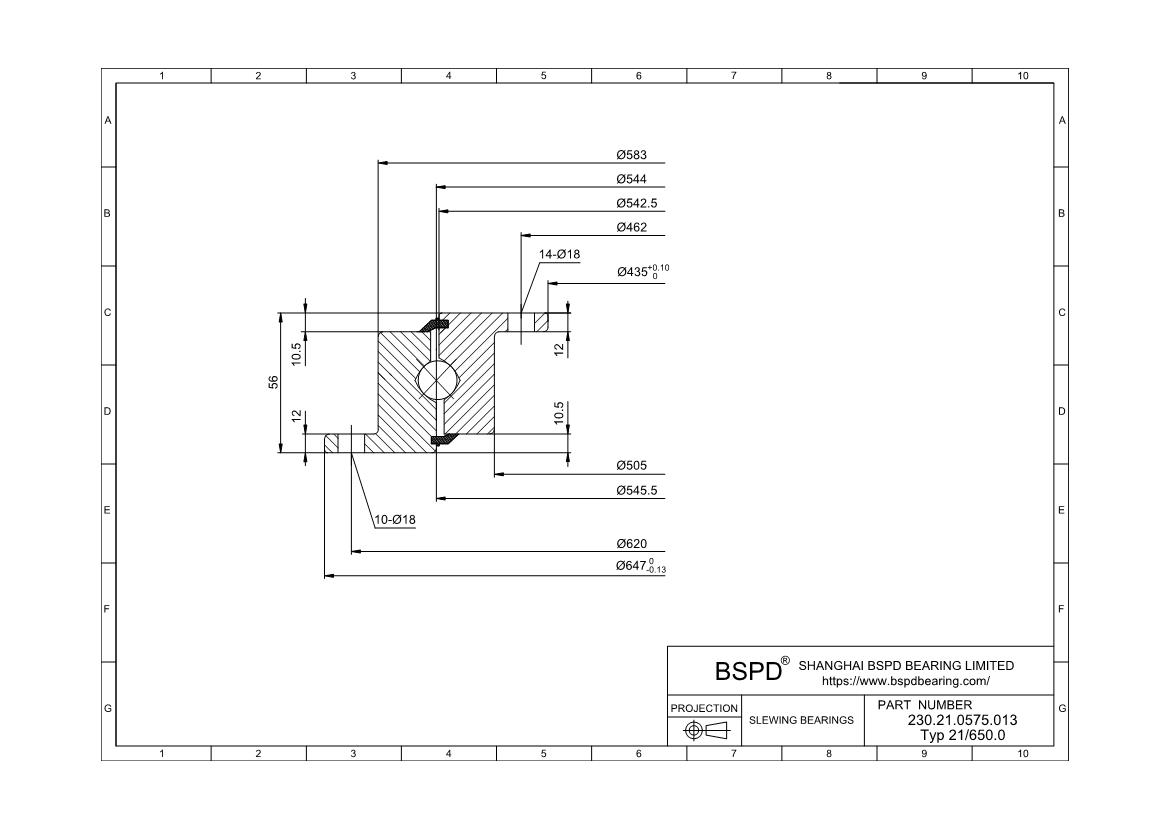

CorrespondFIG5
K10.5 mm
n14
RoHSCompliant
230.21.0575.013 Type 21/650.0
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Slewing Bearings 230.21.0575.013 Type 21/650.0 ? Metric Size Slewing Rings (2) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
