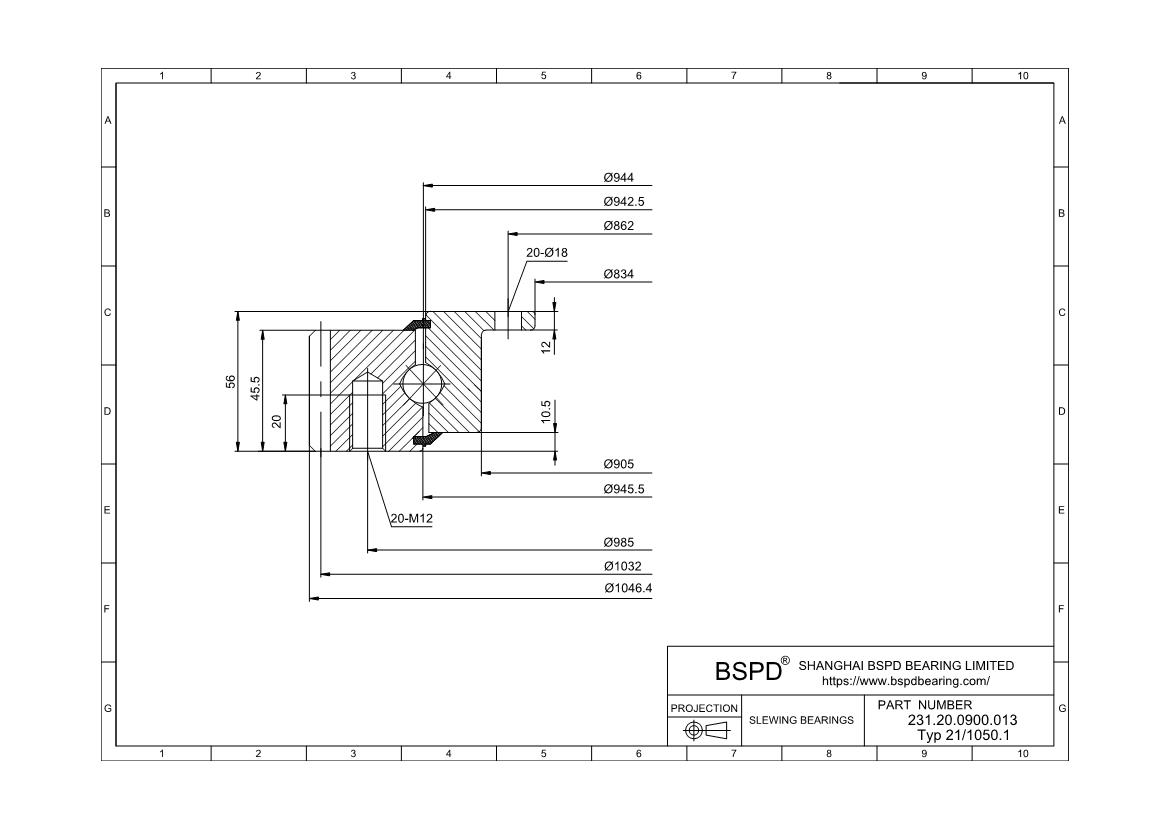

231.20.0900.013 Type 21/1050.1 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 834 mm; Outer Diameter: 1046.4 mm; Width (Thickness): 56 mm;

231.20.0900.013 Type 21/1050.1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number231.20.0900.013 Type 21/1050.1
SeriesSeries 23 25 28
GearExternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring834 mm
Outside Diameter Of Outer Ring1046.4 mm
Internal Diameter On Inner Ring905 mm
Internal Diameter On Outer Ring945.5 mm
Height Of Overall Bearing Assembly56 mm
External Diameter On Inner Ring942.5 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly69.6 Kg
Bolt Circle In Inner Ring862 mm
Bolt Circle In Outer Ring985 mm
Size Of Hole In Inner Ring18 mm
Size Of Hole In Outer Ring18 mm
Diametral Pitch1032 mm
Number Of Gear Teeth129
Permissible Tooth Forces T18.93
Max Gear Tooth Load Fz37.86
Diameter Of Bearing Raceway944 mm
CorrespondFIG4
k·m-0.8
K10.5 mm
n14
M8
RoHSCompliant
231.20.0900.013 Type 21/1050.1
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
