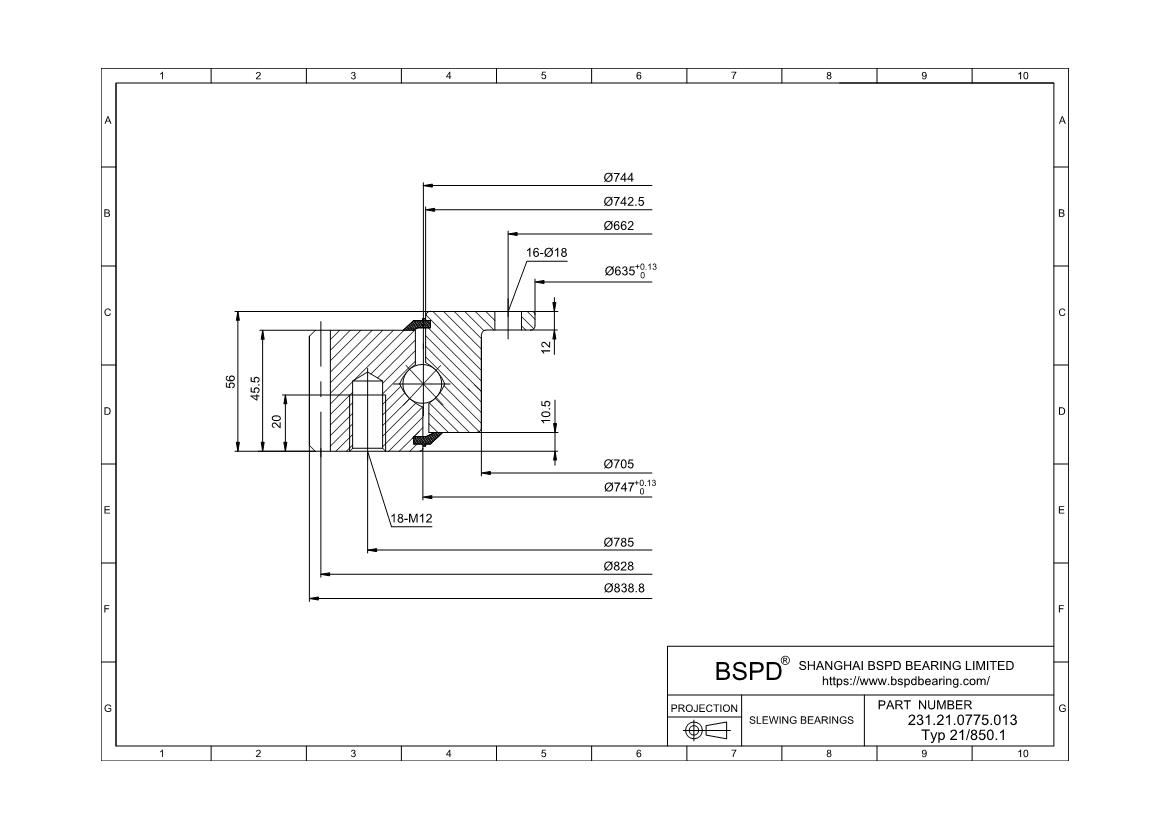

231.21.0775.013 Type 21/850.1 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 635 mm; Outer Diameter: 838.8 mm; Width (Thickness): 56 mm;

231.21.0775.013 Type 21/850.1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number231.21.0775.013 Type 21/850.1
SeriesSeries 23 25 28
GearExternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring635 mm
Outside Diameter Of Outer Ring838.8 mm
Internal Diameter On Inner Ring705 mm
Internal Diameter On Outer Ring747 mm
Height Of Overall Bearing Assembly56 mm
External Diameter On Inner Ring742.5 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly53.5 Kg
Bolt Circle In Inner Ring662 mm
Bolt Circle In Outer Ring785 mm
Size Of Hole In Inner Ring18 mm
Size Of Hole In Outer Ring18 mm
Diametral Pitch828 mm
Number Of Gear Teeth138
Permissible Tooth Forces T14.20
Max Gear Tooth Load Fz28.40
Diameter Of Bearing Raceway744 mm
Distance Between Bottom Outer Ring Inner Ring10.5 mm
CorrespondFIG4
k·m-0.6
n14
M6
F45.5 mm
RoHSCompliant
231.21.0775.013 Type 21/850.1
