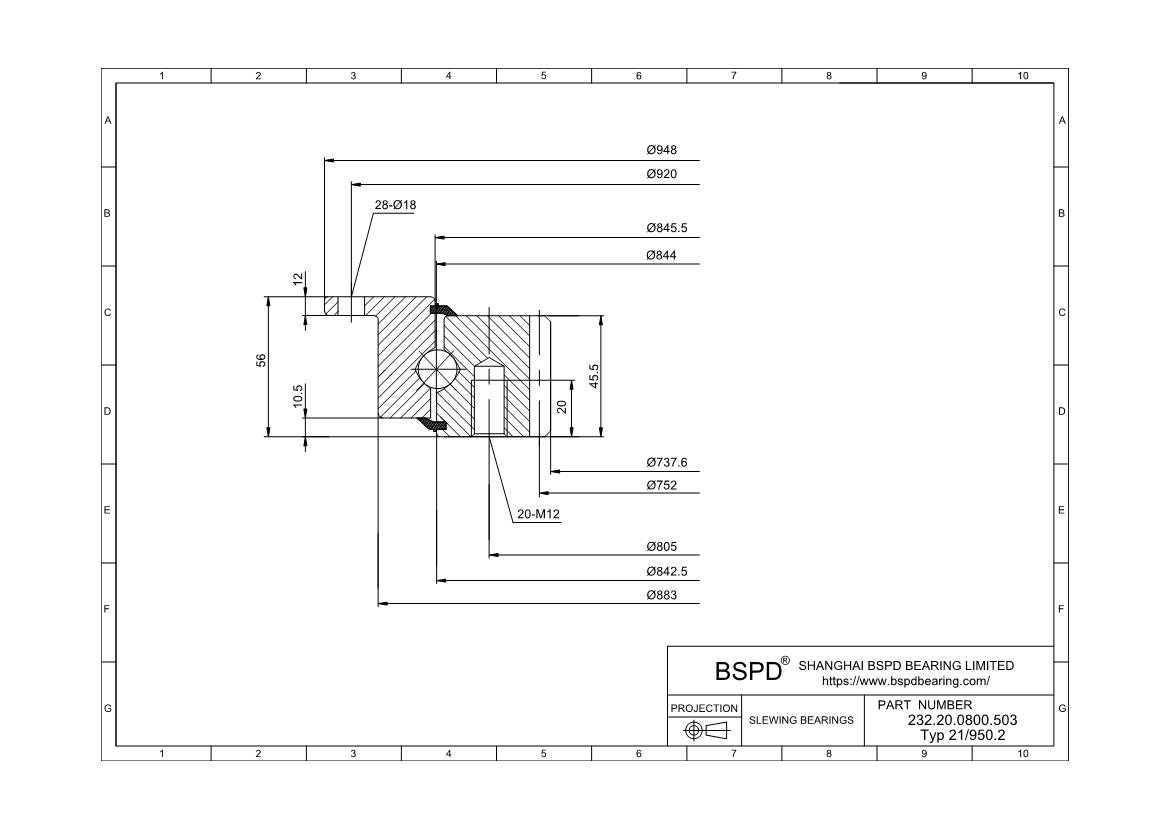

232.20.0800.503 Type 21/950.2 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 737.6 mm; Outer Diameter: 948 mm; Width (Thickness): 56 mm;

232.20.0800.503 Type 21/950.2
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number232.20.0800.503 Type 21/950.2
SeriesSeries 23 25 28
GearInternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring737.6 mm
Outside Diameter Of Outer Ring948 mm
Internal Diameter On Outer Ring845.5 mm
Height Of Overall Bearing Assembly56 mm
External Diameter On Inner Ring842.5 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly61.3 Kg
Bolt Circle In Inner Ring805 mm
Bolt Circle In Outer Ring920 mm
Diametral Pitch752 mm
Number Of Gear Teeth94
Permissible Tooth Forces T20.80
Max Gear Tooth Load Fz41.60
Diameter Of Bearing Raceway844 mm
Distance Between Bottom Outer Ring Inner Ring10.5 mm
CorrespondFIG2
k·m-0.8
n14
Bolt Size (M)12 mm
T20
M8
F45.5 mm
RoHSCompliant
232.20.0800.503 Type 21/950.2
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
