250.14.0400.013 Type 13/500 Metric Size Slewing Rings (2)

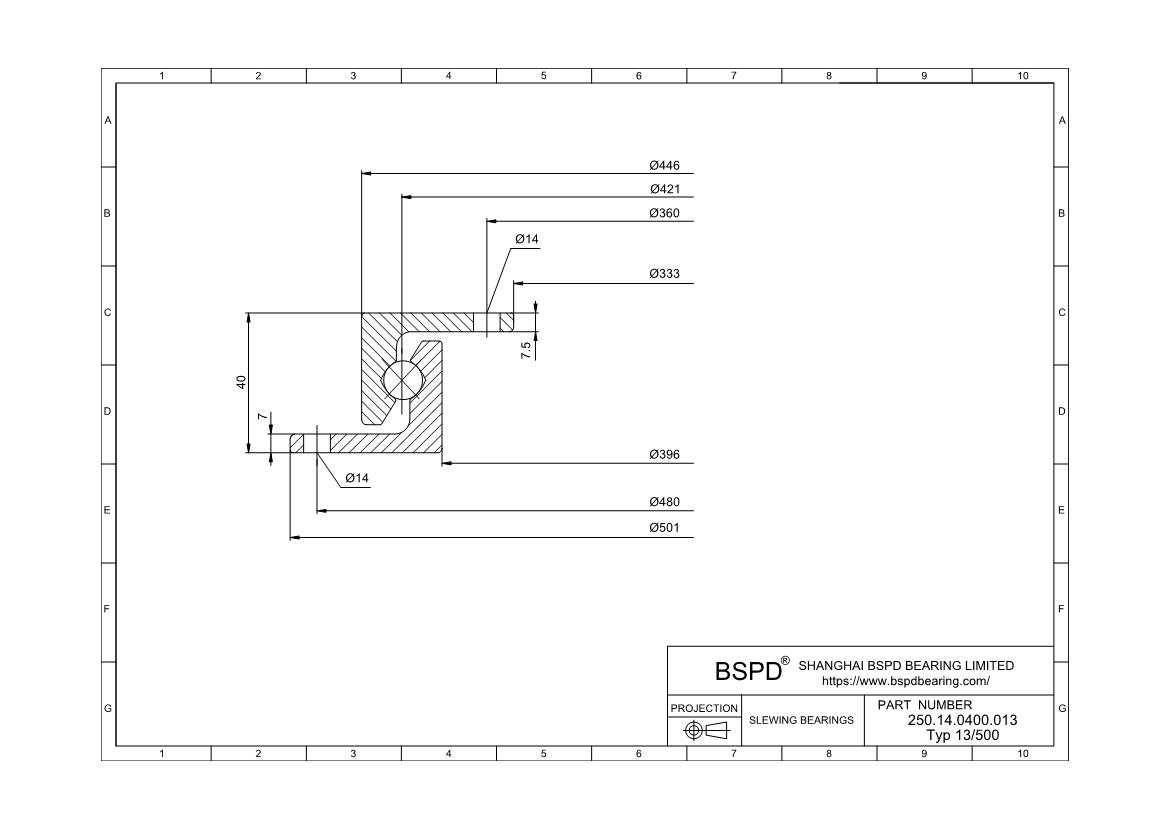

Dimensions: Bore (Inner) Diameter: 333 mm； Outer Diameter: 501 mm； Width (Thickness): 40 mm;

250.14.0400.013 Type 13/500
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number250.14.0400.013 Type 13/500
SeriesSeries 23 25 28
GearWithout gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring333 mm
Outside Diameter Of Outer Ring501 mm
Internal Diameter On Outer Ring396 mm
Height Of Overall Bearing Assembly40 mm
External Diameter On Inner Ring446 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly13.1 Kg
Bolt Circle In Inner Ring360 mm
Bolt Circle In Outer Ring480 mm
Size Of Hole In Inner Ring14 mm
Size Of Hole In Outer Ring14 mm
Diameter Of Bearing Raceway421 mm
CorrespondFIG5
n14
RoHSCompliant
250.14.0400.013 Type 13/500
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
