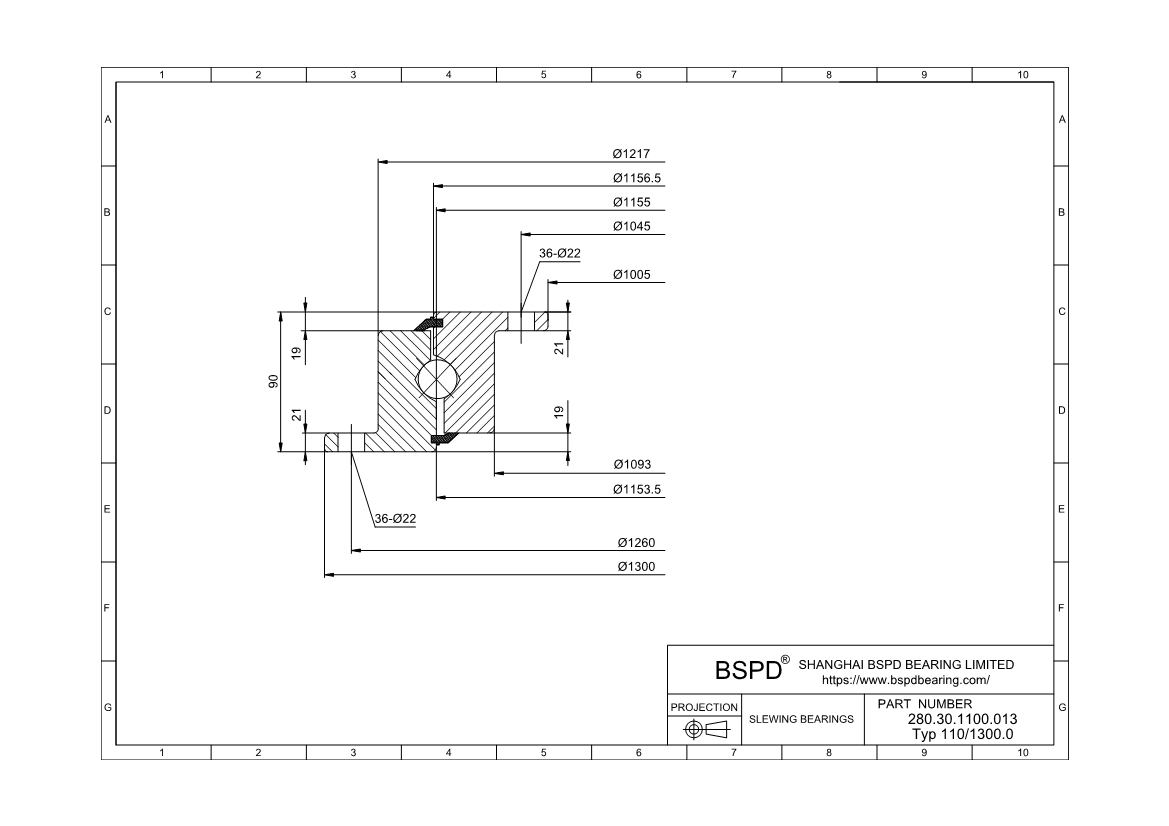

280.30.1100.013 Type 110/1300.0 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1005 mm; Outer Diameter: 1300 mm; Width (Thickness): 90 mm;

280.30.1100.013 Type 110/1300.0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number280.30.1100.013 Type 110/1300.0
SeriesSeries 23 25 28
GearWithout gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring1005 mm
Outside Diameter Of Outer Ring1300 mm
Internal Diameter On Inner Ring1093 mm
Internal Diameter On Outer Ring1153.5 mm
Height Of Overall Bearing Assembly90 mm
External Diameter On Inner Ring1156.5 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly159 Kg
Bolt Circle In Inner Ring1045 mm
Bolt Circle In Outer Ring1260 mm
Size Of Hole In Inner Ring22 mm
Size Of Hole In Outer Ring22 mm
Diameter Of Bearing Raceway1155 mm
Distance Between Bottom Outer Ring Inner Ring19 mm
CorrespondFIG5
K19 mm
n16
RoHSCompliant
280.30.1100.013 Type 110/1300.0
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Slewing Bearings 280.30.1100.013 Type 110/1300.0 ? Metric Size Slewing Rings (2) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
