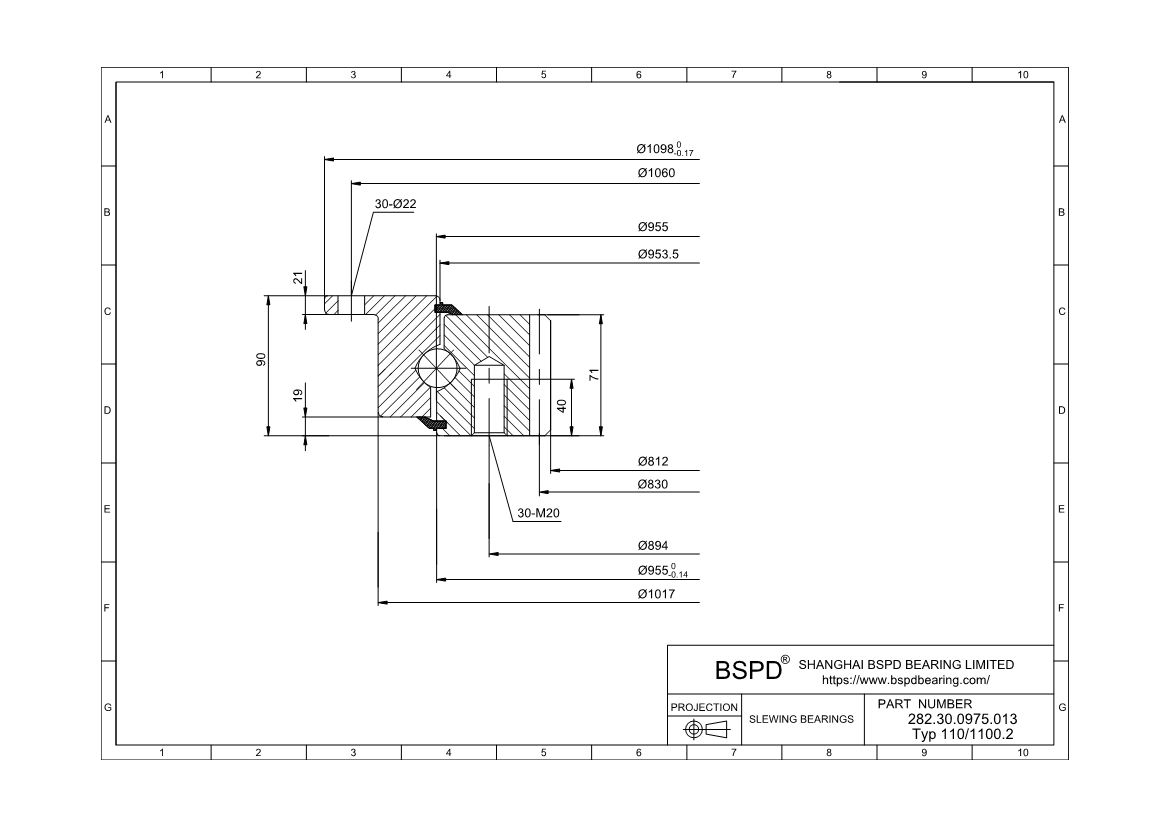

282.30.0975.013 Type 110/1100.2 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 812 mm; Outer Diameter: 1098 mm; Width (Thickness): 90 mm;

282.30.0975.013 Type 110/1100.2
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number282.30.0975.013 Type 110/1100.2
SeriesSeries 23 25 28
GearInternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring812 mm
Outside Diameter Of Outer Ring1098 mm
Internal Diameter On Outer Ring953.5 mm
Height Of Overall Bearing Assembly90 mm
External Diameter On Inner Ring955 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly159 Kg
Bolt Circle In Inner Ring894 mm
Bolt Circle In Outer Ring1060 mm
Diametral Pitch830 mm
Number Of Gear Teeth83
Permissible Tooth Forces T40.60
Max Gear Tooth Load Fz81.20
Diameter Of Bearing Raceway955 mm
CorrespondFIG2
k·m-1.0
K19 mm
n16
Bolt Size (M)20 mm
T40
M10
F71 mm
RoHSCompliant
282.30.0975.013 Type 110/1100.2
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
