3R16-220E1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 210.04"； Outer Diameter: 236.976"； Width (Thickness): 10.55";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 3R16-220E1 |
| Curve No. | |
| Radial(lbs) | 1440000 |
| Compresive Thrust(lbs) | 13100000 |
| Moment(ft-lbs) | 44400000 |
| Weight(lbs) | 18208 |
| Thrust Capacity(lbs) | |

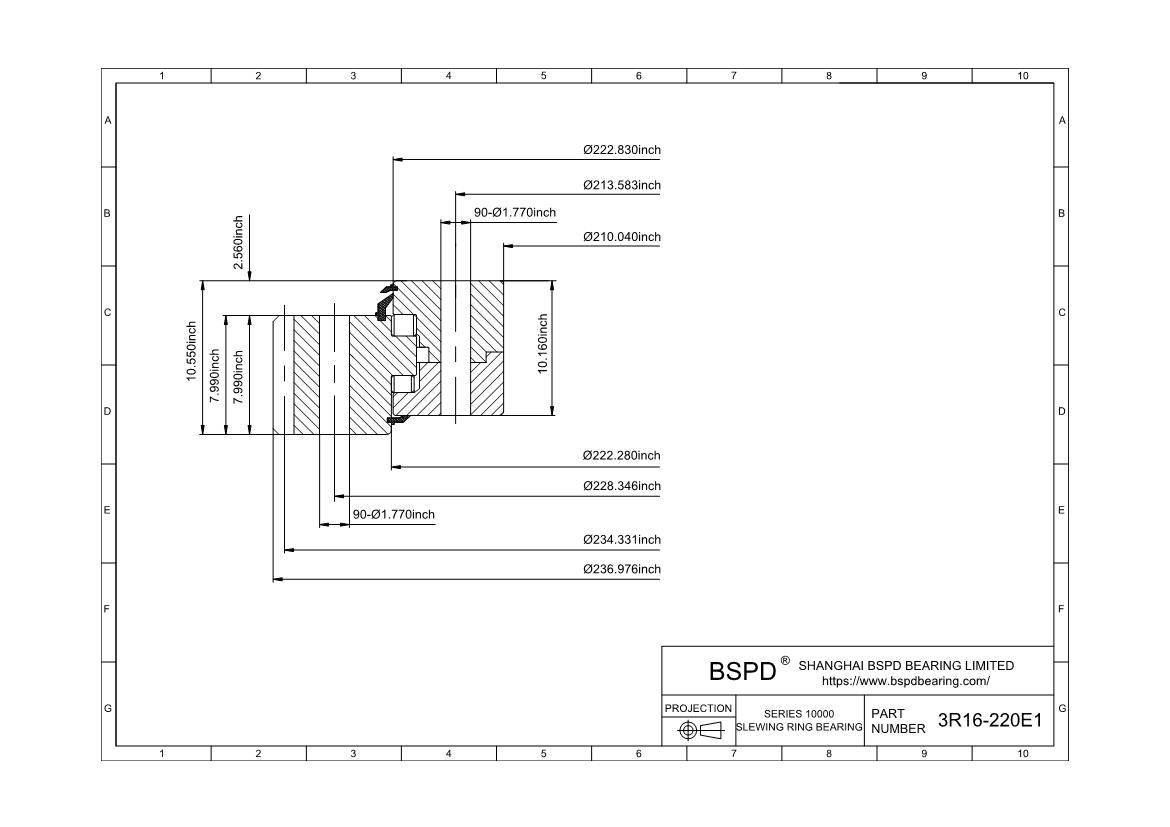

| Outline Dimensions(inches) | |
| HT | 10.55 |
| OH | 7.99 |
| K | 2.56 |
| IH | 10.16 |
| OD | 236.976 |
| OI | 222.28 |
| IO | 222.83 |
| ID | 210.04 |
| PD | 234.331 |
| DP | 24Module |
| Mounting Holes | |
| OBC | 228.346 |
| OU | 1.77 |
| No of OBC Holes | 90 |
| IBC | 213.583 |
| IU | 1.77 |
| No of IBC Holes | 90 |
| Gear Data | |
| Tooth From 20 | F.D |
| Gear Hardness(BHN) | 250-300 |
| F | 7.99 |
| NO of Teeth | 248 |
| Max.allow tang.tooth load(lbs) | 190458 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 3R16-220E1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
