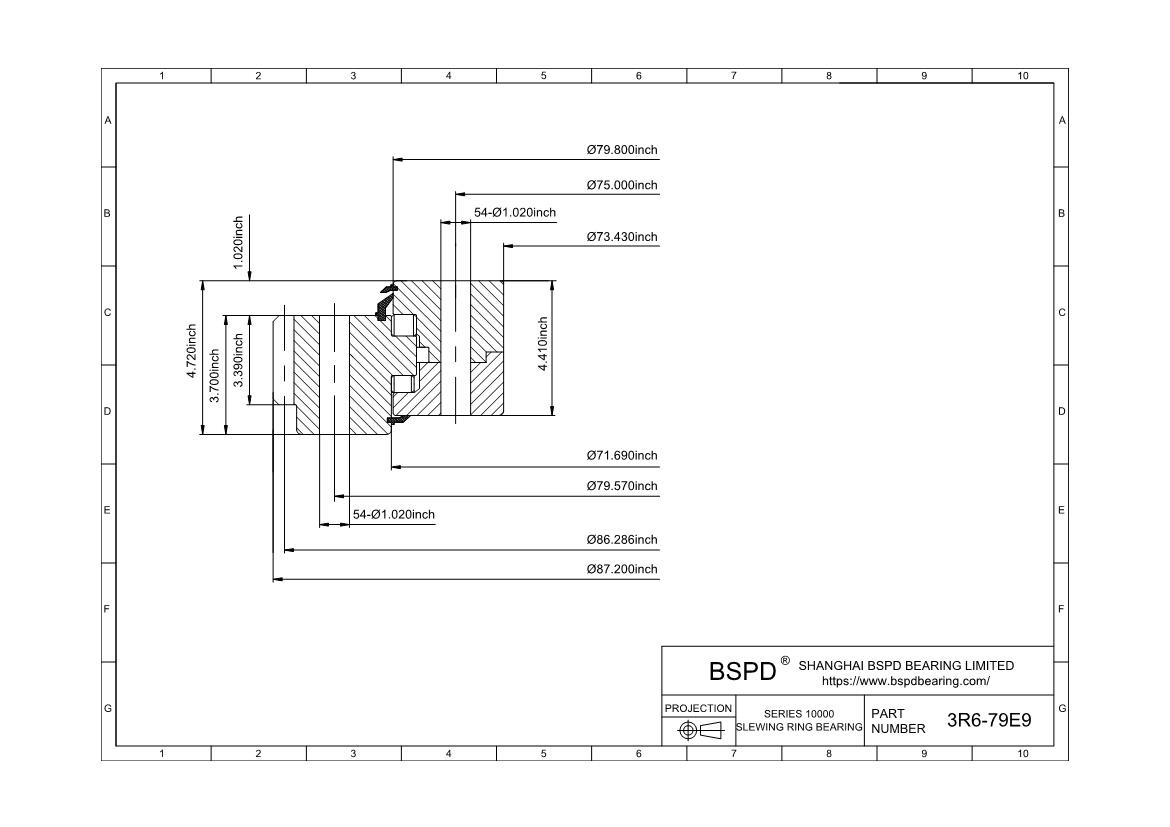

3R6-79E9
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 73.43"； Outer Diameter: 87.2"； Width (Thickness): 4.72";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 3R6-79E9 |
| Curve No. | 6-79 |
| Radial(lbs) | 279000 |
| Compresive Thrust(lbs) | 2505000 |
| Moment(ft-lbs) | 3118000 |
| Weight(lbs) | 1556 |
| Thrust Capacity(lbs) | |
| Outline Dimensions(inches) | |
| HT | 4.72 |
| OH | 3.70 |
| K | 1.02 |
| IH | 4.41 |
| OD | 87.200 |
| OI | 79.57 |
| IO | 79.80 |
| ID | 73.43 |
| PD | 86.286 |
| DP | 1.75 |
| Mounting Holes | |
| OBC | 82.874 |
| OU | 1.02 |
| No of OBC Holes | 54 |
| IBC | 75.000 |
| IU | 1.02 |
| No of IBC Holes | 54 |
| Gear Data | |
| Tooth From 20 | STUB |
| Gear Hardness(BHN) | 250-300 |
| F | 3.39 |
| NO of Teeth | 151 |
| Max.allow tang.tooth load(lbs) | 35166 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 3R6-79E9 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
