3R16-102P5
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 89.38"； Outer Diameter: 116.75"； Width (Thickness): 14.12";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 3R16-102P5 |
| Curve No. | 16L-102 |
| Radial(lbs) | 2492000 |
| Compresive Thrust(lbs) | 10365000 |
| Moment(ft-lbs) | 16451000 |
| Weight(lbs) | 13500 |
| Thrust Capacity(lbs) | |

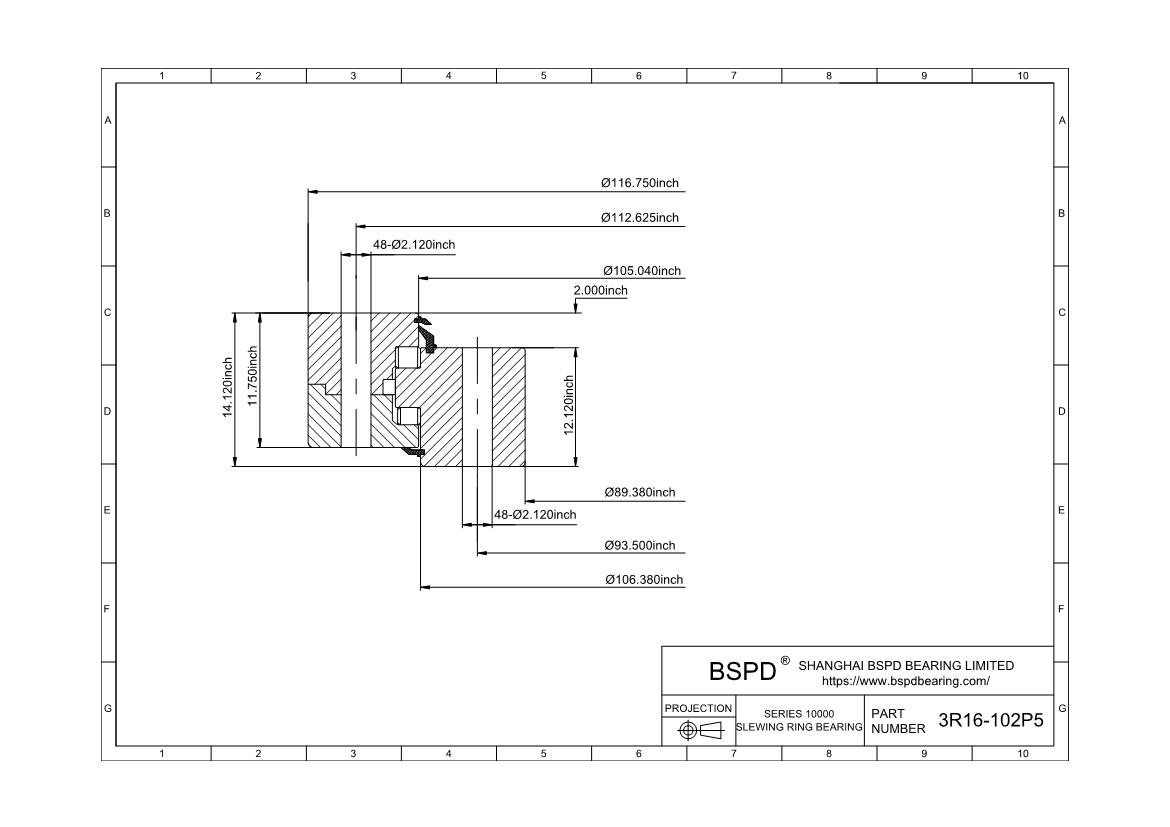

| Outline Dimensions(inches) | |
| HT | 14.12 |
| OH | 11.75 |
| K | 2.00 |
| IH | 12.12 |
| OD | 116.75 |
| OI | 105.04 |
| IO | 106.38 |
| ID | 89.38 |
| PD | |
| DP | |
| Mounting Holes | |
| OBC | 112.625 |
| OU | 2.12 |
| No of OBC Holes | 48 |
| IBC | 93.500 |
| IU | 2.12 |
| No of IBC Holes | 48 |
| Gear Data | |
| Tooth From 20 | |
| Gear Hardness(BHN) | 250-300 |
| F | |
| NO of Teeth | |
| Max.allow tang.tooth load(lbs) | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 3R16-102P5 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
