IMO Slewing Rings & Slewing drives

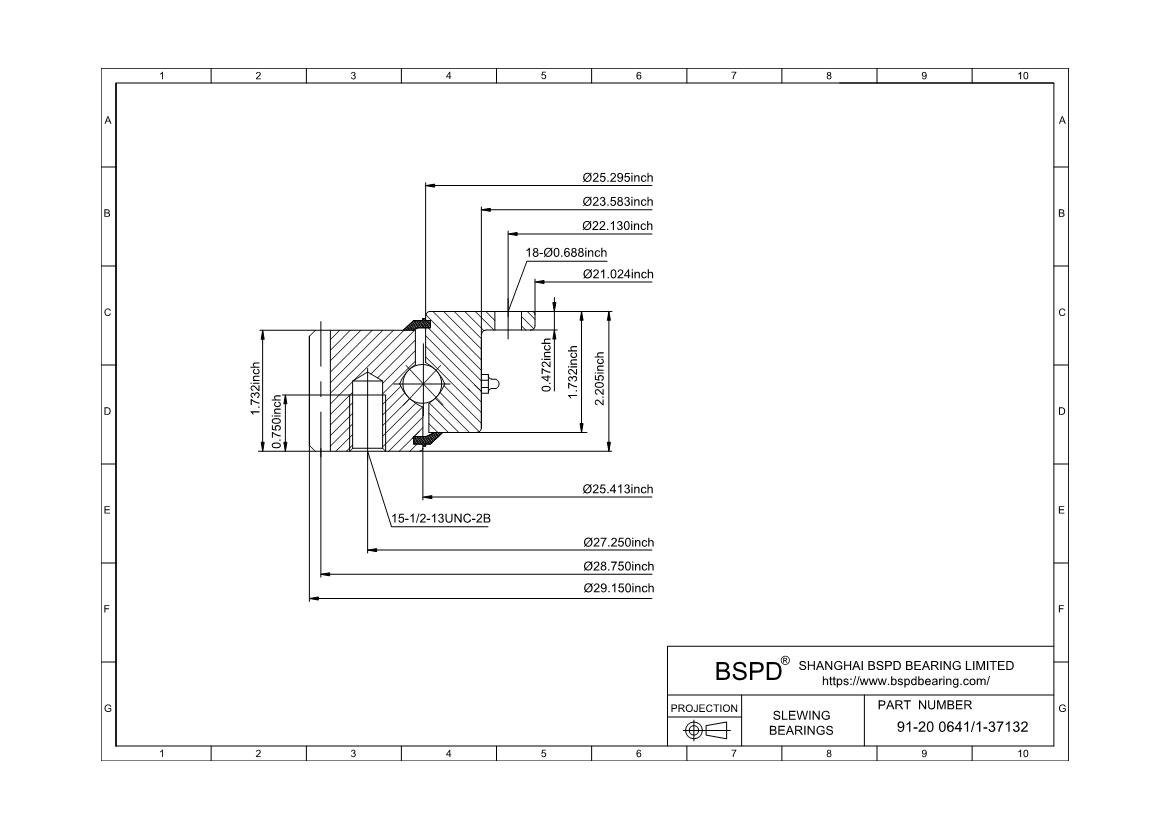

Dimensions: Bore (Inner) Diameter: 21.024； Outer Diameter: 29.15； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 91-20 0641/1-37132 |
| Gear | External toothed |
| Geometry | |
| Weight(G) | 107 |
| Outside diameter outer ring(Da) | 29.15 |
| Inside diameter inner ring(di) | 21.024 |
| inside diameter outer ring(Di) | 25.413 |
| Outside diameter inner ring (da) | 25.295 |
| Diameter outer ring (a) | |
| Diameter inner ring (b) | |
| Mounting Holes | |
| Pitch circle diameter Outer Ring (La) | 27.25 |
| Number Holes in Outer Ring (na) | 15 |
| Pitch circle diameter Inner Ring (Li) | 22.13 |
| Number Holes in Inner Ring (ni) | 18 |
| Gearing and Tooth Forces | |
| Pitch Circle Diameter (do) | 28.75 |
| Diametral Pitch (Pd) | 4 |
| Number of Teeth (Z2) | 115 |
| Permissible tooth force (fz norm)(lbs) | 2540 |
| Maximum perissible tooth force (fz max)(lbs) | 5800 |
| Load Rating | |
| Static Co rad(lbs) | 41365 |
| Static Co Max(lbs) | 96443 |
| Dynamic C rad(lbs) | 41366 |
| Dynamic C Max(lbs) | 41590 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 91-20 0641/1-37132 ? IMO Slewing Rings & Slewing drives Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
