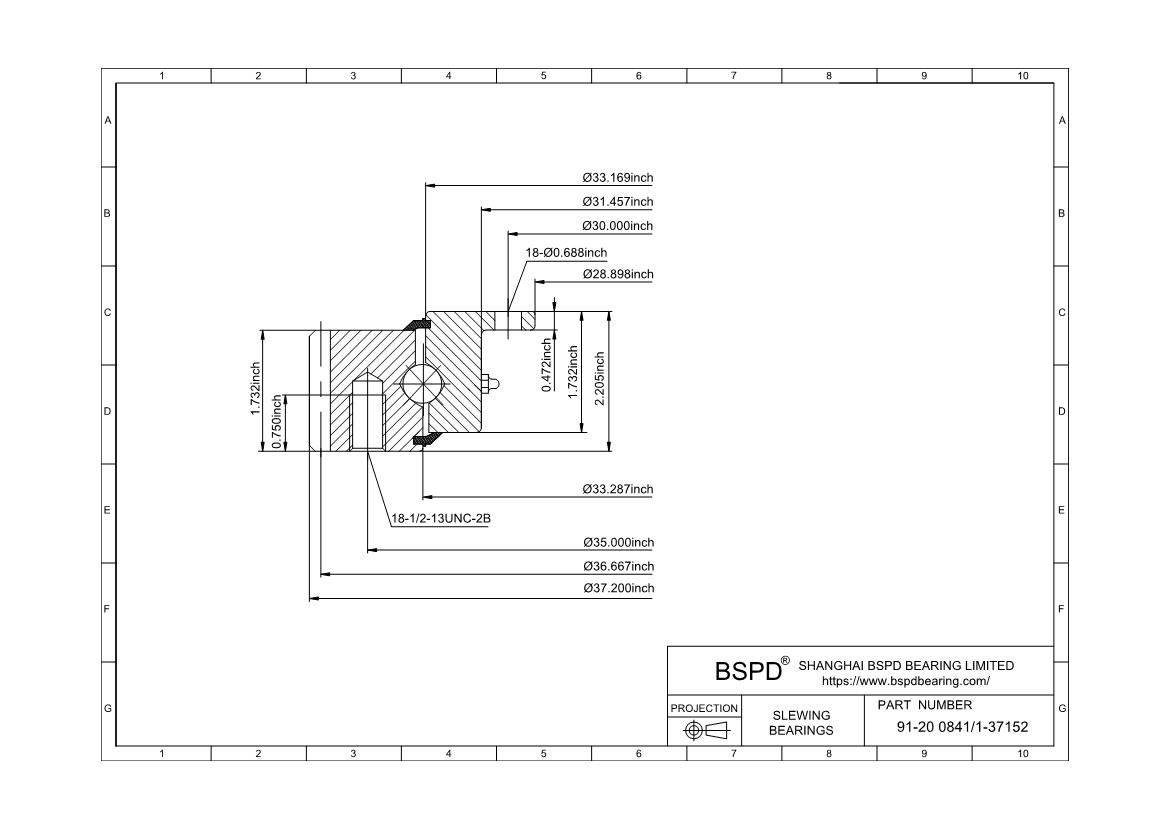

IMO Slewing Rings & Slewing drives
Dimensions: Bore (Inner) Diameter: 28.898； Outer Diameter: 37.2； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 91-20 0841/1-37152 |
| Gear | External toothed |
| Geometry | |
| Weight(G) | 157 |
| Outside diameter outer ring(Da) | 37.2 |
| Inside diameter inner ring(di) | 28.898 |
| inside diameter outer ring(Di) | 33.287 |
| Outside diameter inner ring (da) | 33.169 |
| Diameter outer ring (a) | |
| Diameter inner ring (b) | |
| Mounting Holes | |
| Pitch circle diameter Outer Ring (La) | 35 |
| Number Holes in Outer Ring (na) | 18 |
| Pitch circle diameter Inner Ring (Li) | 30 |
| Number Holes in Inner Ring (ni) | 18 |
| Gearing and Tooth Forces | |
| Pitch Circle Diameter (do) | 36.667 |
| Diametral Pitch (Pd) | 3 |
| Number of Teeth (Z2) | 110 |
| Permissible tooth force (fz norm)(lbs) | 3700 |
| Maximum perissible tooth force (fz max)(lbs) | 7960 |
| Load Rating | |
| Static Co rad(lbs) | 54179 |
| Static Co Max(lbs) | 126567 |
| Dynamic C rad(lbs) | 45861 |
| Dynamic C Max(lbs) | 46086 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 91-20 0841/1-37152 ? IMO Slewing Rings & Slewing drives Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
