91-20 1091/1-37172 IMO Slewing Rings & Slewing drives
Dimensions: Bore (Inner) Diameter: 38.74; Outer Diameter: 46.867; Width (Thickness): ;

91-20 1091/1-37172
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number 91-20 1091/1-37172
Gear External toothed

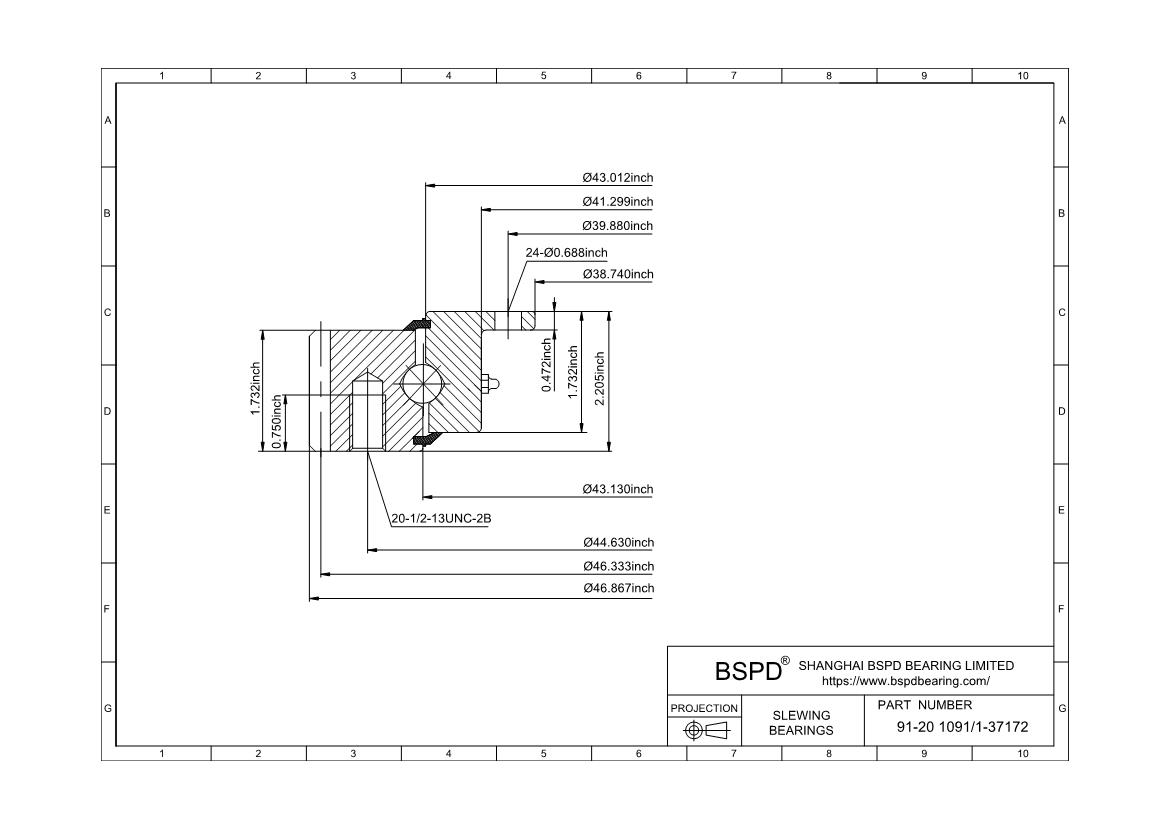

Geometry
Weight(G) 201
Outside diameter outer ring(Da) 46.867
Inside diameter inner ring(di) 38.740
inside diameter outer ring(Di) 43.130
Outside diameter inner ring (da) 43.102
Diameter outer ring (a)
Diameter inner ring (b)
Mounting Holes
Pitch circle diameter Outer Ring (La) 44.63
Number Holes in Outer Ring (na) 20
Pitch circle diameter Inner Ring (Li) 39.88
Number Holes in Inner Ring (ni) 24
Gearing and Tooth Forces
Pitch Circle Diameter (do) 46.333
Diametral Pitch (Pd) 3
Number of Teeth (Z2) 139
Permissible tooth force (fz norm)(lbs) 3700
Maximum perissible tooth force (fz max)(lbs) 7960
Load Rating
Static Co rad(lbs) 70140
Static Co Max(lbs) 164111
Dynamic C rad(lbs) 50357
Dynamic C Max(lbs) 50582
91-20 1091/1-37172
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Slewing Bearings 91-20 1091/1-37172 ? IMO Slewing Rings & Slewing drives Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
