A12-125P1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 119.33"； Outer Diameter: 129.92"； Width (Thickness): 5.5";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A12-125P1 |
| Raceway Moment (ft-lbs) | 5600000 |
| Compressive Thrust(lbs) | 2350000 |
| Weight(lbs) | 2400 |

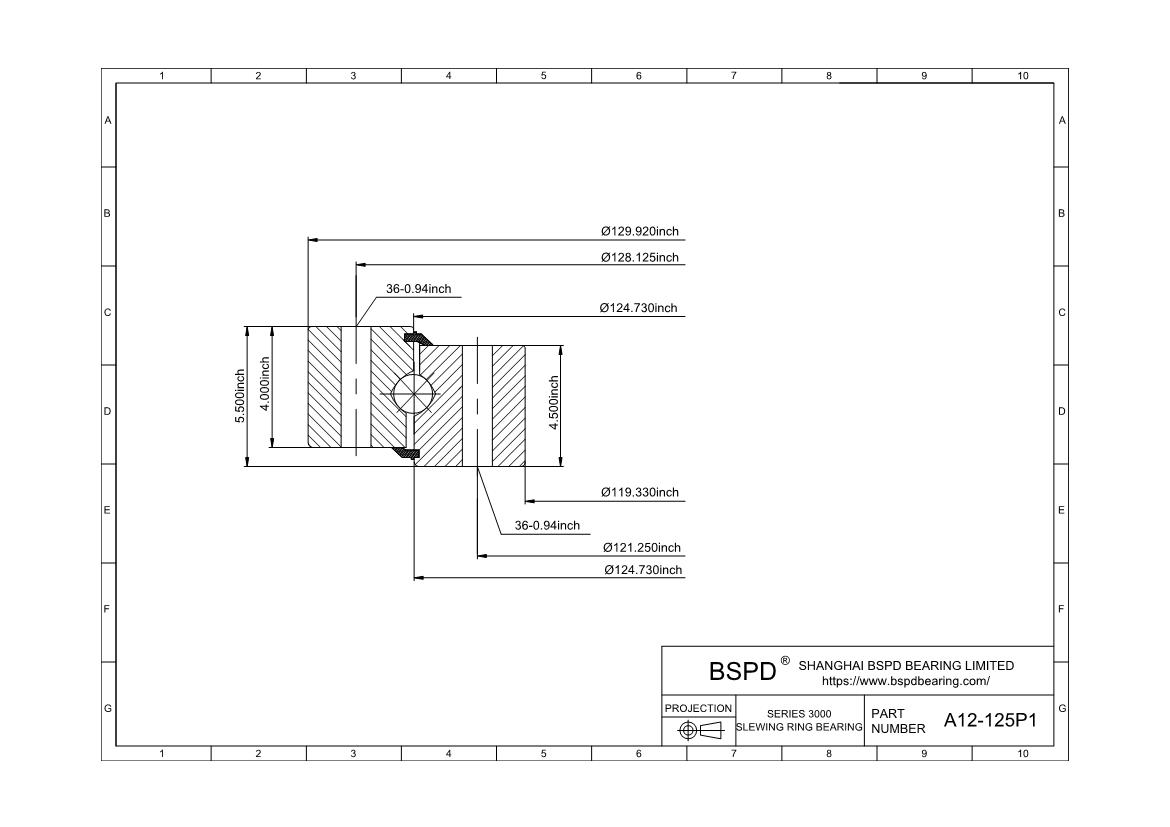

| Outline Dimensions(inches) | |
| OD | 129.92 |
| ID | 119.33 |
| OE | - |
| OI | 124.73 |
| IO | 124.77 |
| HT | 5.5 |
| OH | 4 |
| IH | 4.5 |
| Mounting Holes | |
| OBC | 128.125 |
| OU | 0.94 |
| No of OBC Holes | 36 |
| IBC | 121.25 |
| IU | 0.94 |
| No of IBC Holes | 36 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A12-125P1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
