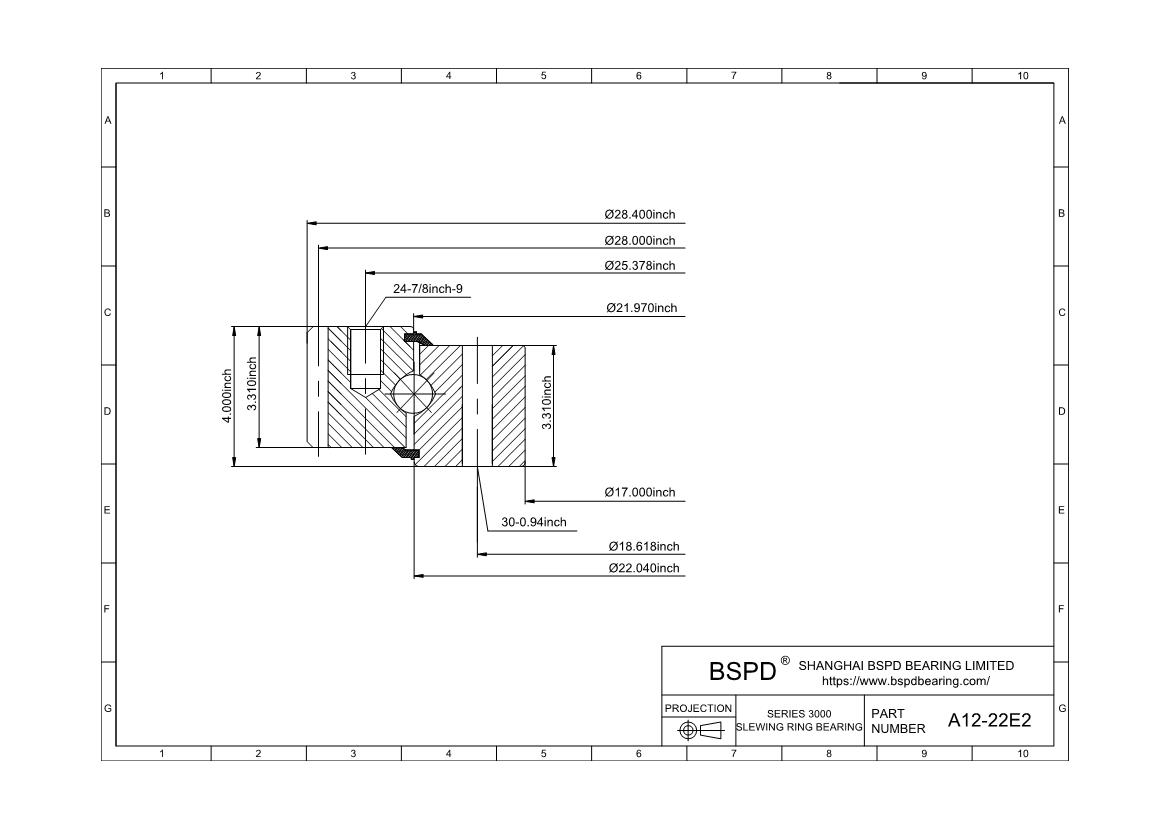

A12-22E2
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 17.0"； Outer Diameter: 28.4"； Width (Thickness): 4";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A12-22E2 |
| Raceway Moment (ft-lbs) | 256000 |
| Compressive Thrust(lbs) | 611000 |
| Weight(lbs) | 319 |
| Outline Dimensions(inches) | |
| OD | 28.4 |
| ID | 17 |
| OE | - |
| OI | 21.97 |
| IO | 22.04 |
| HT | 4 |
| OH | 3.31 |
| IH | 3.31 |
| Mounting Holes | |
| OBC | 25.378 |
| OU | 7/8-9 |
| No of OBC Holes | 24 |
| IBC | 18.618 |
| IU | 0.94 |
| No of IBC Holes | 30-2 |
| Hole Figure Style | 4 |
| Gear Data | |
| PD | 28 |
| DP | 4 |
| NO of Teeth | 112 |
| Tooth From | 20d,4/5 Fellow |
| F | 3.31 |
| Tangential Gear Capacity(lbs) | 14800 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A12-22E2 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
