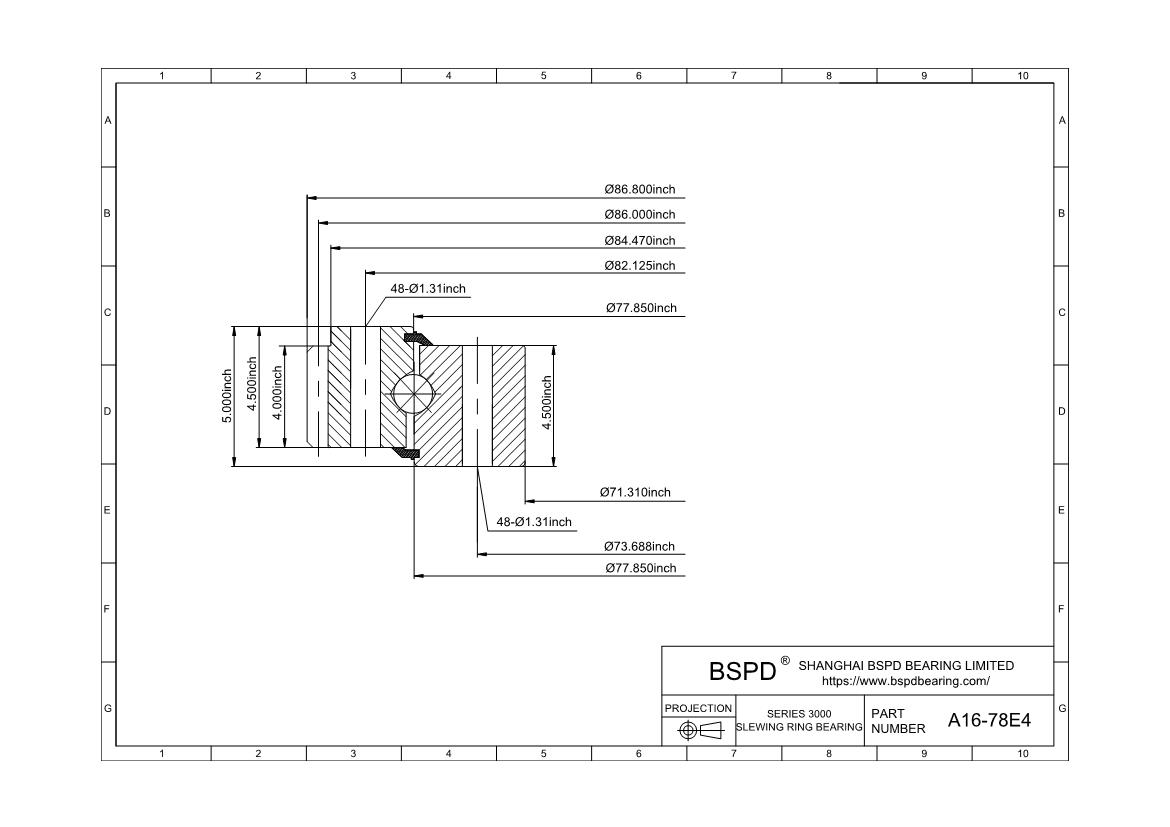

A16-78E4
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 71.31"； Outer Diameter: 86.8"； Width (Thickness): 5";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A16-78E4 |
| Raceway Moment (ft-lbs) | 2480000 |
| Compressive Thrust(lbs) | 1670000 |
| Weight(lbs) | 2033 |
| Outline Dimensions(inches) | |
| OD | 86.8 |
| ID | 71.31 |
| OE | 84.47 |
| OI | 77.85 |
| IO | 77.94 |
| HT | 5 |
| OH | 4.5 |
| IH | 4.5 |
| Mounting Holes | |
| OBC | 82.125 |
| OU | 1.31 |
| No of OBC Holes | 48 |
| IBC | 73.688 |
| IU | 1.31 |
| No of IBC Holes | 48 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | 86 |
| DP | 2 |
| NO of Teeth | 172 |
| Tooth From | 20d, Stub |
| F | 4 |
| Tangential Gear Capacity(lbs) | 36500 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A16-78E4 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
