A8-41E1
Inch Size Slewing Rings

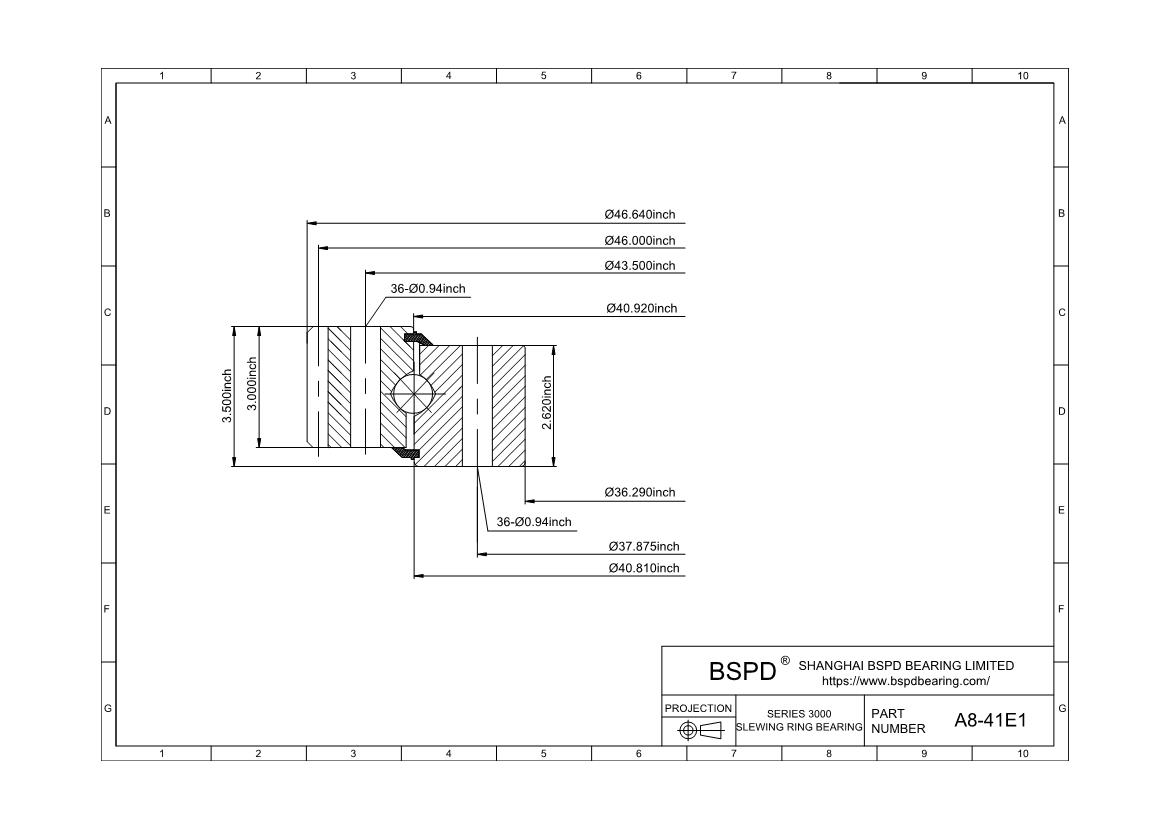

Dimensions: Bore (Inner) Diameter: 36.29"； Outer Diameter: 46.64"； Width (Thickness): 3.5";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A8-41E1 |
| Raceway Moment (ft-lbs) | 627000 |
| Compressive Thrust(lbs) | 803000 |
| Weight(lbs) | 456 |
| Outline Dimensions(inches) | |
| OD | 46.64 |
| ID | 36.29 |
| OE | - |
| OI | 40.92 |
| IO | 40.81 |
| HT | 3.5 |
| OH | 3 |
| IH | 2.62 |
| Mounting Holes | |
| OBC | 43.5 |
| OU | 0.94 |
| No of OBC Holes | 36 |
| IBC | 37.875 |
| IU | 0.94 |
| No of IBC Holes | 36 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | 46 |
| DP | 2.5 |
| NO of Teeth | 115 |
| Tooth From | 20d, Stub |
| F | 3 |
| Tangential Gear Capacity(lbs) | 24000 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A8-41E1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
