H7-30E1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 26.73"； Outer Diameter: 33.9"； Width (Thickness): 3.23";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | H7-30E1 |
| Raceway Moment (ft-lbs) | 160000 |
| Compressive Thrust(lbs) | 273000 |
| Weight(lbs) | 230 |

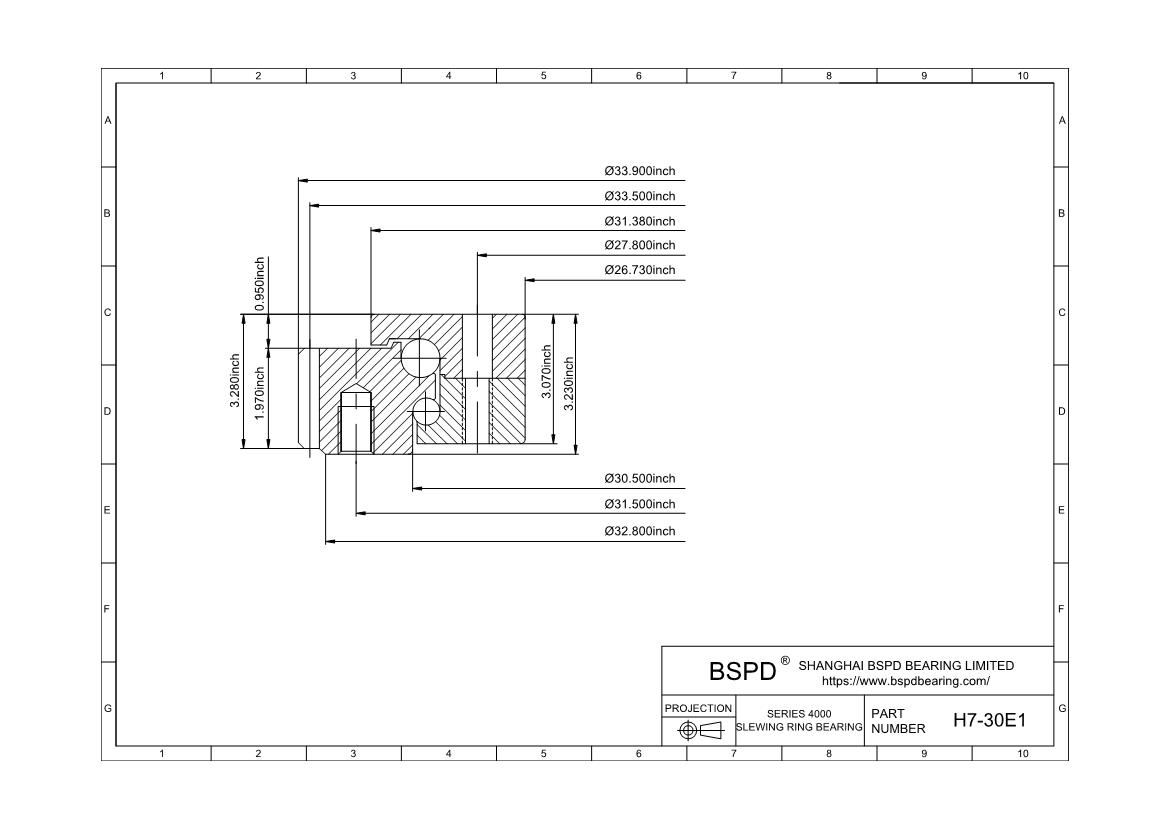

| Fig. no. | 1 |
| Outline Dimensions(inches) | |
| OD | 33.9 |
| ID | 26.73 |
| OE | 32.8 |
| OI | 30.5 |
| IO | 31.38 |
| HT | 3.23 |
| OH | 3.28 |
| IH | 3.07 |
| Mounting Holes | |
| OBC | 31.5 |
| OU | 5/8-11 |
| No of OBC Holes | 24 |
| IBC | 27.8 |
| IU | 5/8-11 |
| No of IBC Holes | 24 |
| Gear Data | |
| K | 0.95 |
| PD | 33.5 |
| DP | 4 |
| Tooth From 20 | STUB |
| F | 1.97 |
| NO of Teeth | 134 |
| Gear Hardness(BHN) | 180-210 |
| Max.allow tang.tooth load(lbs) | 4650 |
| Tangential Gear Capacity(lbs) | |
