H7-38E1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 35.27"； Outer Diameter: 42.5"； Width (Thickness): 3.23";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | H7-38E1 |
| Raceway Moment (ft-lbs) | 272000 |
| Compressive Thrust(lbs) | 373000 |
| Weight(lbs) | 290 |

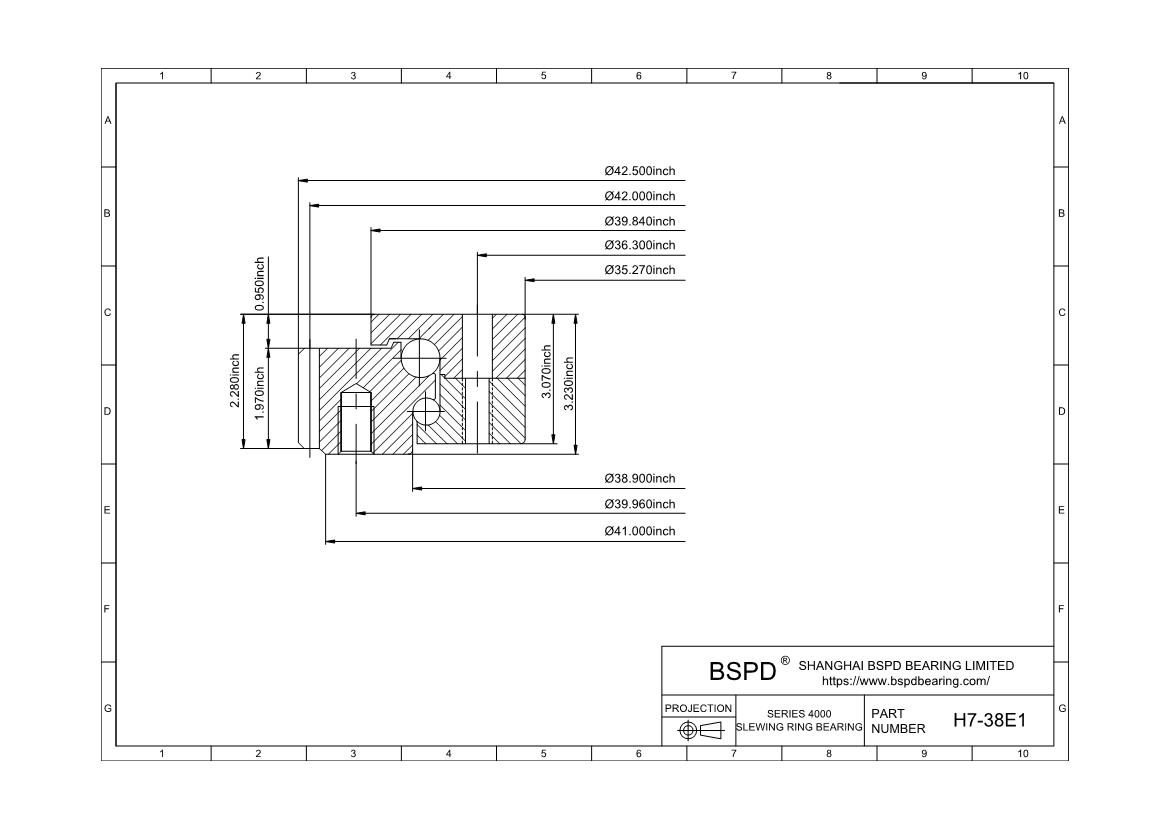

| Fig. no. | 1 |
| Outline Dimensions(inches) | |
| OD | 42.5 |
| ID | 35.27 |
| OE | 41 |
| OI | 38.9 |
| IO | 39.84 |
| HT | 3.23 |
| OH | 2.28 |
| IH | 3.07 |
| Mounting Holes | |
| OBC | 31.5 |
| OU | 5/8-11 |
| No of OBC Holes | 30 |
| IBC | 36.3 |
| IU | 5/8-11 |
| No of IBC Holes | 30 |
| Gear Data | |
| K | 0.95 |
| PD | 42 |
| DP | 3.5 |
| Tooth From 20 | STUB |
| F | 1.97 |
| NO of Teeth | 147 |
| Gear Hardness(BHN) | 180-210 |
| Max.allow tang.tooth load(lbs) | 5400 |
| Tangential Gear Capacity(lbs) | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings H7-38E1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
