HS6-37E1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 32.83"； Outer Diameter: 41.2"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | HS6-37E1Z |
| Moment Load Rating (Crm) | 130,900ft-lbs | 584.375KN |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Maximum Allowable Gear Tooth Load (Fz) | 6,860lbs | 30.625KN |
| Bearing Types | Slewing Ring Bearing |

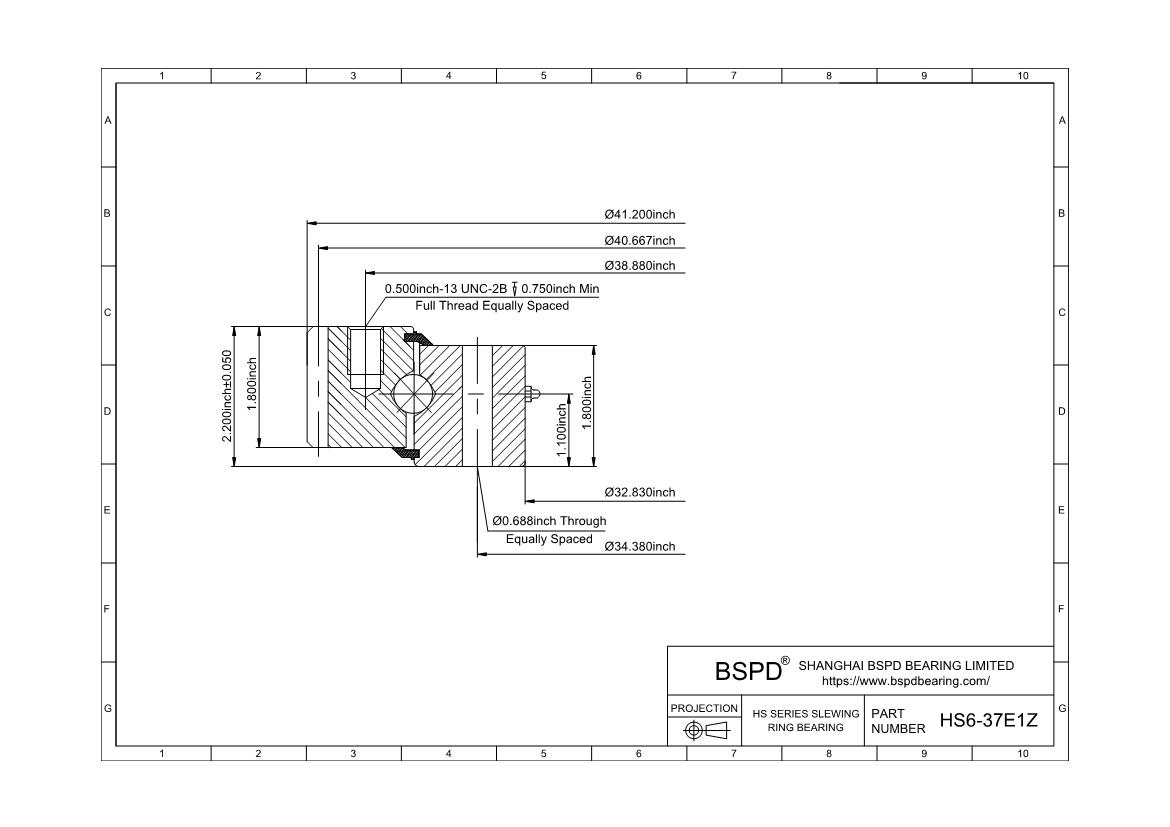

| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 41.200" | 1046.48mm |
| Inside Diameter of Inner Ring (di) | 32.830" | 833.88mm |
| Approximate Weight (lb) | 207lbs | 93.893KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 38.880" | 987.55mm |
| Number Holes in Outer Ring (no) | 28 |
| Bolt Circle in Inner Ring (Li) | 34.380" | 873.25mm |
| Number Holes in Inner Ring (ni) | 20 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 40.667" | 1032.94mm |
| Diametral Pitch (Pd) | 3 |
| Number of Gear Teeth (z2) | 122 |
| Mating Pinions | 39200003 39200004 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings HS6-37E1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
