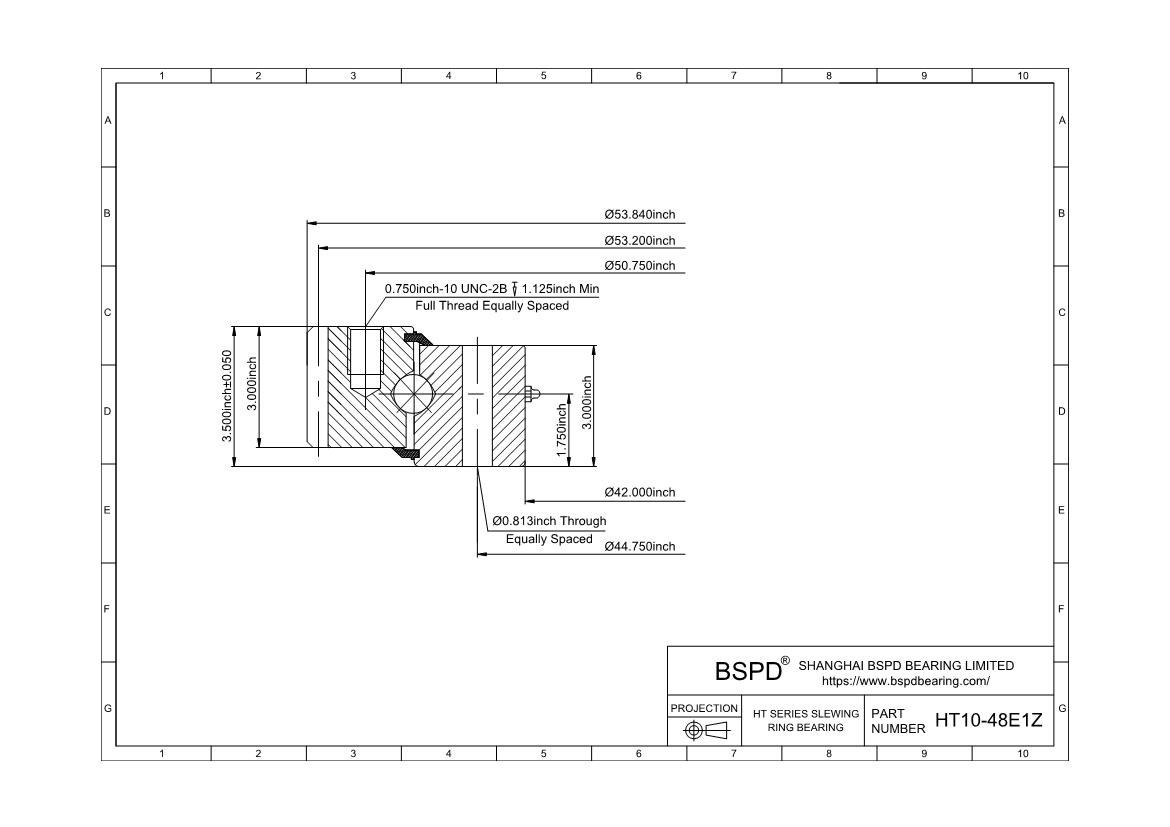

HT10-48E1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 42.0"； Outer Diameter: 53.84"； Width (Thickness): ;
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Specifications | |
| Part Number | HT10-48E1Z |
| Maximum Allowable Gear Tooth Load (Fz) | 18901lbs | 84.379KN |
| Moment Load Rating (Crm) | 517900ft-lbs | 2312.054KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 53.84" | 1367.54mm |
| Inside Diameter of Inner Ring (di) | 42" | 1066.8mm |
| Internal Diameter on Outer Ring (Di) | - |
| External Diameter on Inner Ring (do) | - |
| Approximate Weight (lbs) | 660lbs | 299.369KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 50.75" | 1289.05mm |
| Number Holes in Outer Ring (no) | 36 |
| Bolt Circle in Inner Ring (Li) | 44.75" | 1136.65mm |
| Number Holes in Inner Ring (ni) | 40 |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | 20° |
| Pitch Diameter (D2) | 53.2" |
| Diametral Pitch (Pd) | 2.5 |
| Number of Teeth (z2) | 133 |
Print PDF
Request a 3D CAD Model
