KH-325E Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 28.5"; Outer Diameter: 36.667"; Width (Thickness): ;

KH-325E
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
Specifications
Part Number KH-325E
Bearing Types Slewing Ring Bearing
Maximum Allowable Gear Tooth Load (Fz) 5,730lbs | 25.58KN
Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 36.667" | 931.34mm
Outside Diameter of Outer Ring (Do) Tolerance +0/-.020" | +0/-0.51mm
Inside Diameter of Inner Ring (di) 28.500" | 723.9mm
Inside Diameter of Inner Ring (di) Tolerance ±.050" | ±1.27mm
Internal Diameter on Outer Ring (Di) 32.750" | 831.85mm
Internal Diameter on Outer Ring (Di) Tolerance *
External Diameter on Inner Ring (do) 32.250" | 819.15mm
External Diameter on Inner Ring (do) Tolerance *
Approximate Weight (G) 205lbs | 92.986KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 34.500" | 876.3mm

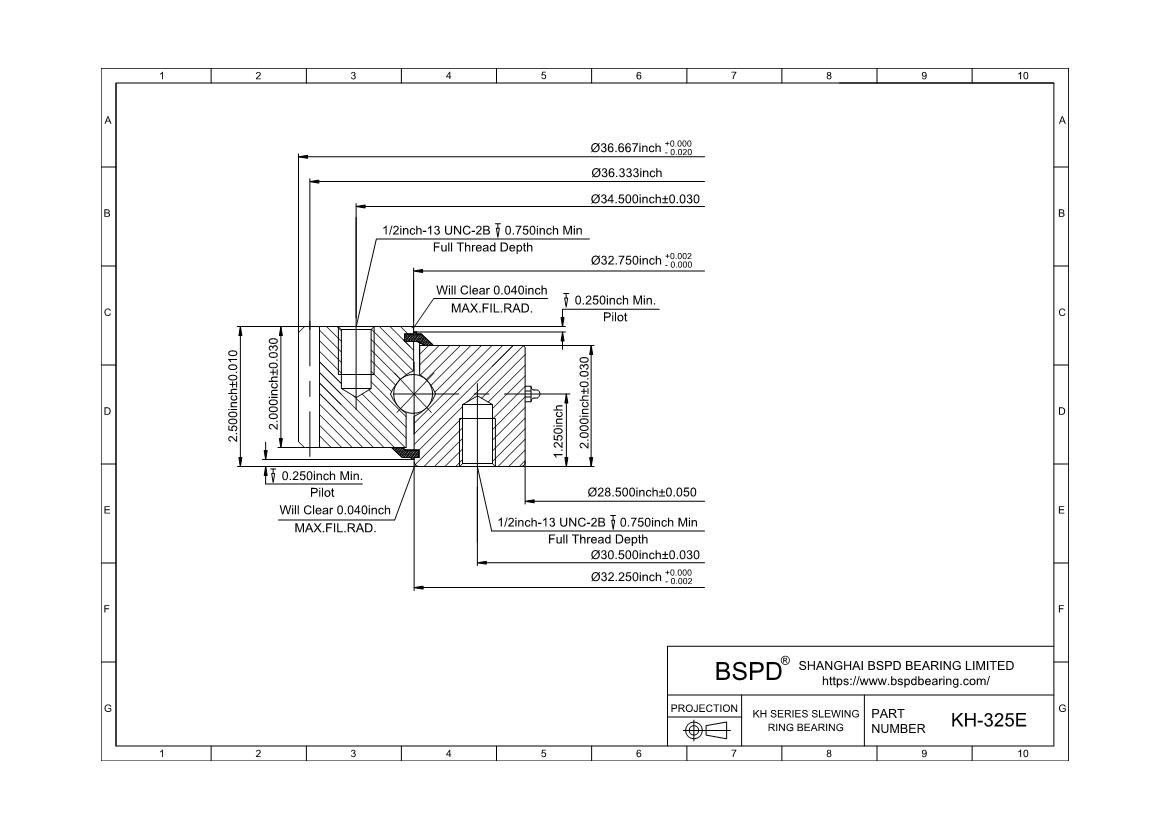

Size of Hole in Outer Ring See the picture on the right
Number Holes in Outer Ring (no) 28
Bolt Circle in Inner Ring (Li) 30.500" | 774.7mm
Size of Hole in Inner Ring See the picture on the right
Number Holes in Inner Ring (ni) 28
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Pitch diameter of gear(D2) 36.333" | 922.86mm
Diametral Pitch (Pd) 6
Number of gear teeth(z2) 218
Dynamic Capacity
Axial Dynamic Capacity 45,000
Moment Dynamic Capacity 48,100
Intermittent Capacity
Axial Intermittent Capacity 167,000
Moment Intermittent Capacity 92,000
