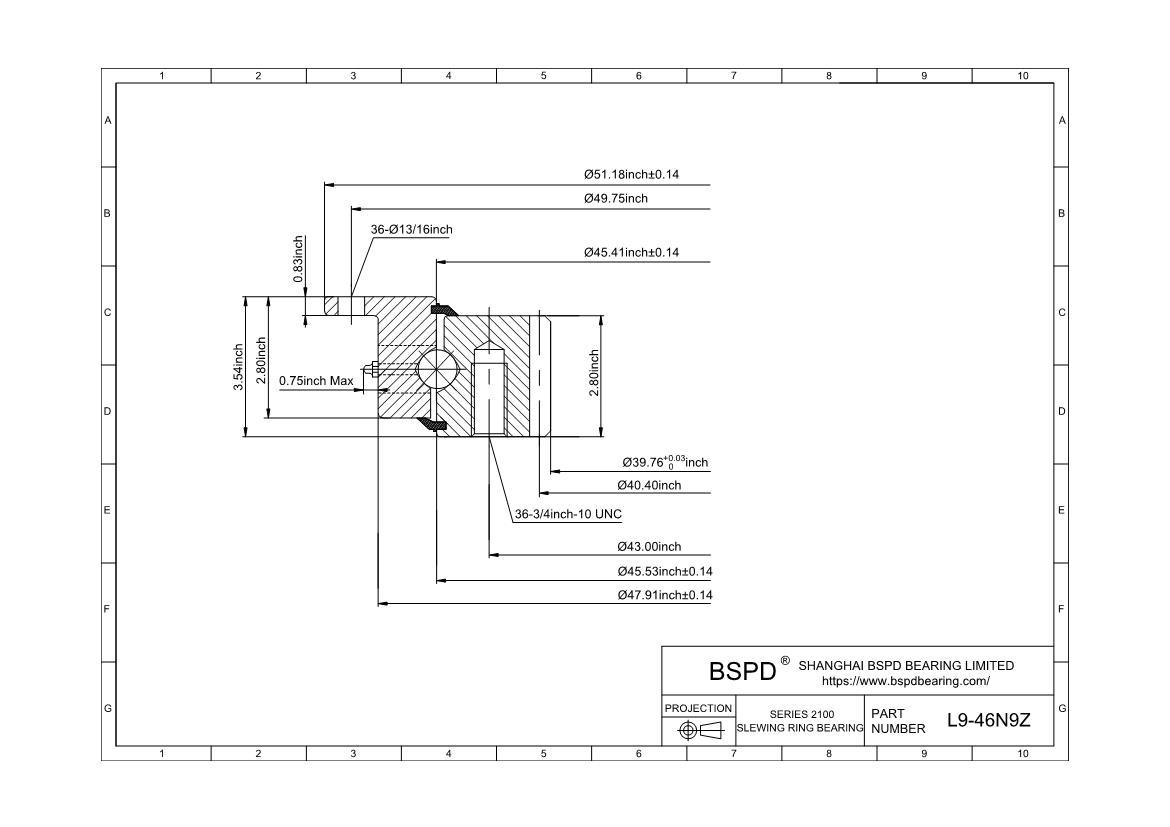

L9-46N9Z
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 39.76"； Outer Diameter: 51.18"； Width (Thickness): 3.54";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | L9-46N9Z |
| Weight(lbs) | 433 |
| Outline Dimensions(inches) | |
| OD | 51.18 |
| ID | 39.76 |
| IO | 45.53 |
| OI | 45.41 |
| IE | - |
| OE | 47.91 |
| Mounting Holes | |
| OBC | 49.75 |
| NO.Holes OBC | 36 |
| IBC | 43 |
| NO.Holes IBC | 36 |
| Gear Data | |
| PD | 40.4 |
| DP20 Stub | 2.5 |
| NO of Teeth | 101 |
| Max.Tangential Toothload | 15400 |
| Mating Pinions | P2.5-5.6D2 P2.5-6.8D2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings L9-46N9Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
