R8-35E3 Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 30.87"; Outer Diameter: 40.533"; Width (Thickness): 2.874";

R8-35E3
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number R8-35E3
Raceway Moment (ft-lbs) 309800
Compressive Thrust(lbs) 431700
Weight(lbs) 339

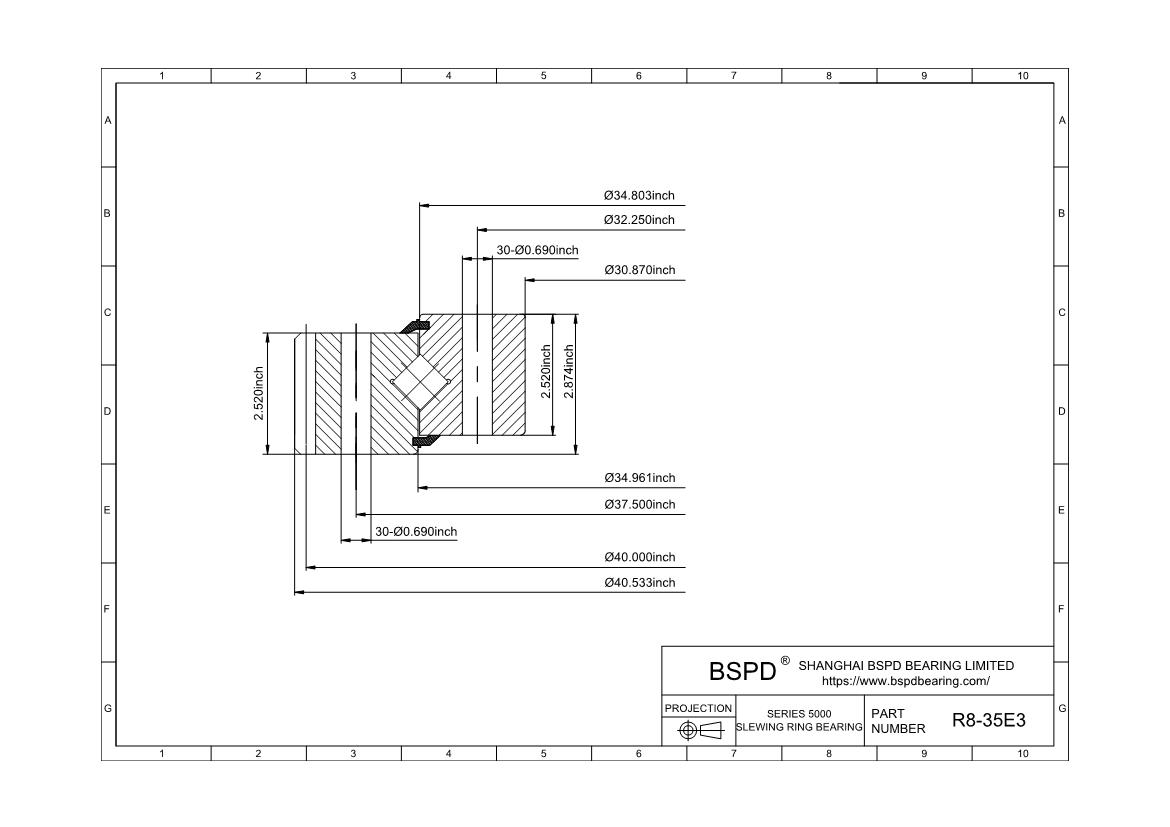

Outline Dimensions(inches)
OD 40.533
ID 30.87
OI 34.961
IO 34.803
HT 2.874
OH 2.520
IH 2.520
PD 40.000
DP 3
Mounting Holes
OBC 37.500
OU .69
No of OBC Holes 30
IBC 32.250
IU .69
No of IBC Holes 30
Gear Data
Tooth From 20 Stub
Gear Hardness(BHN) 250-300
F 2.520
NO of Teeth 120
Max.allow tang.tooth load(lbs) 14900
R8-35E3
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Slewing Bearings R8-35E3 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
