RK6-25E1Z Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 21.03"; Outer Diameter: 29.15"; Width (Thickness): ;

RK6-25E1Z
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
Specifications
Part Number RK6-25E1Z
Maximum Allowable Gear Tooth Load (Fz) 5700lbs | 25.446KN
Moment Load Rating (Crm) 49800ft-lbs | 222.321KN
Bearing Types Slewing Ring Bearing

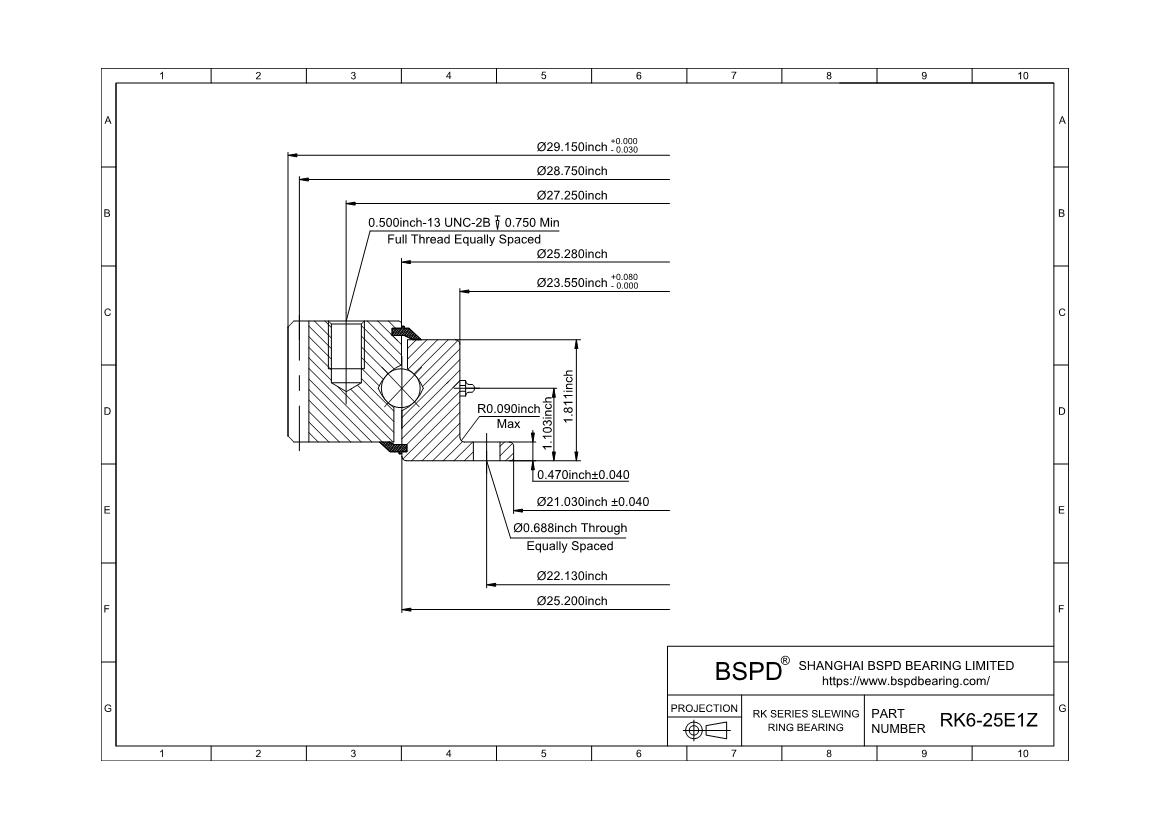

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 29.15 " | 740.41mm
Outside Diameter of Outer Ring (Do) Tolerance -0.03 " | -0.76mm
Inside Diameter of Inner Ring (di) 21.03" | 534.16mm
Inside Diameter of Inner Ring (di) Tolerance ±.040 " | ±1.02mm
External Diameter on Outer Ring (Dr) -
External Diameter on Outer Ring (Dr) Tolerance -
Internal Diameter on Outer Ring (Di) 25.28 " | 642.11mm
External Diameter on Inner Ring (do) 25.2 " | 640.08mm
Internal Diameter on Inner Ring (dr) 23.55 " | 598.17mm
Internal Diameter on Inner Ring (dr) Tolerance +0.08 " | +2.03mm
Approximate Weight (lb) 115 lbs | 52.163KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 27.25 " | 692.15mm
Number Holes in Outer Ring (no) 15
Bolt Circle in Inner Ring (Li) 22.13 " | 562.1mm
Number Holes in Inner Ring (ni) 18
Gear Data
Pitch Diameter of Gear (D2) 28.75 " | 730.25mm
Diametral Pitch (Pd) 4
Number of Gear Teeth (z2) 115
Pressure Angle of Gear Teeth (α) 20 º
Mating Pinions 39200001 39200002
RK6-25E1Z
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
