RKS.061.25.1754
SKF Slewing Bearings

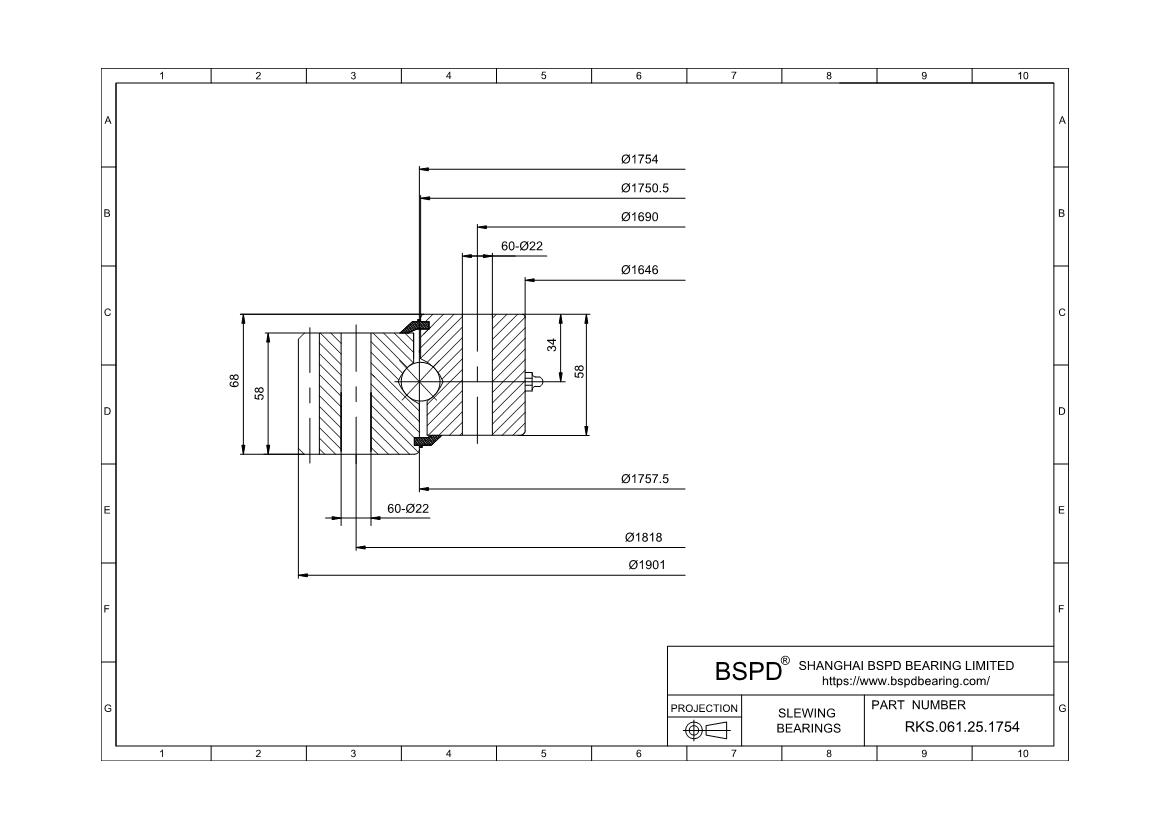

Dimensions: Bore (Inner) Diameter: 1646 mm； Outer Diameter: 1901 mm； Width (Thickness): 68mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.061.25.1754 |
| Gear | external gear |
| Geometry | |
| weight | 257 |
| dm | 1 754 |
| D | 1 901 |
| D1 | 1 757,5 |
| d | 1 646 |
| d1 | 1 750,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 1 818 |
| Ke | 22 |
| Ne | 60 |
| inner ring | |
| Ji | 1 690 |
| Ki | 22 |
| Ni | 60 |
| Gear Data | |
| Gear Dimensions(d01) | 1 870 |
| Module(m) | 10 |
| Number of teeth(z) | 187 |
| x·m | +6,5 |
| k·m | –1 |
| Permissible tooth forces T(fnormal) | 45 |
| Permissible tooth forces T(fMAX) | 130 |
| Basic load ratings | |
| axial dynamic (C) | 585 |
| static (C0) | 5 840 |
| Static limitingload diagram | |
| Raceway curves | r6 |
| Bolt curves | b6 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.061.25.1754 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
