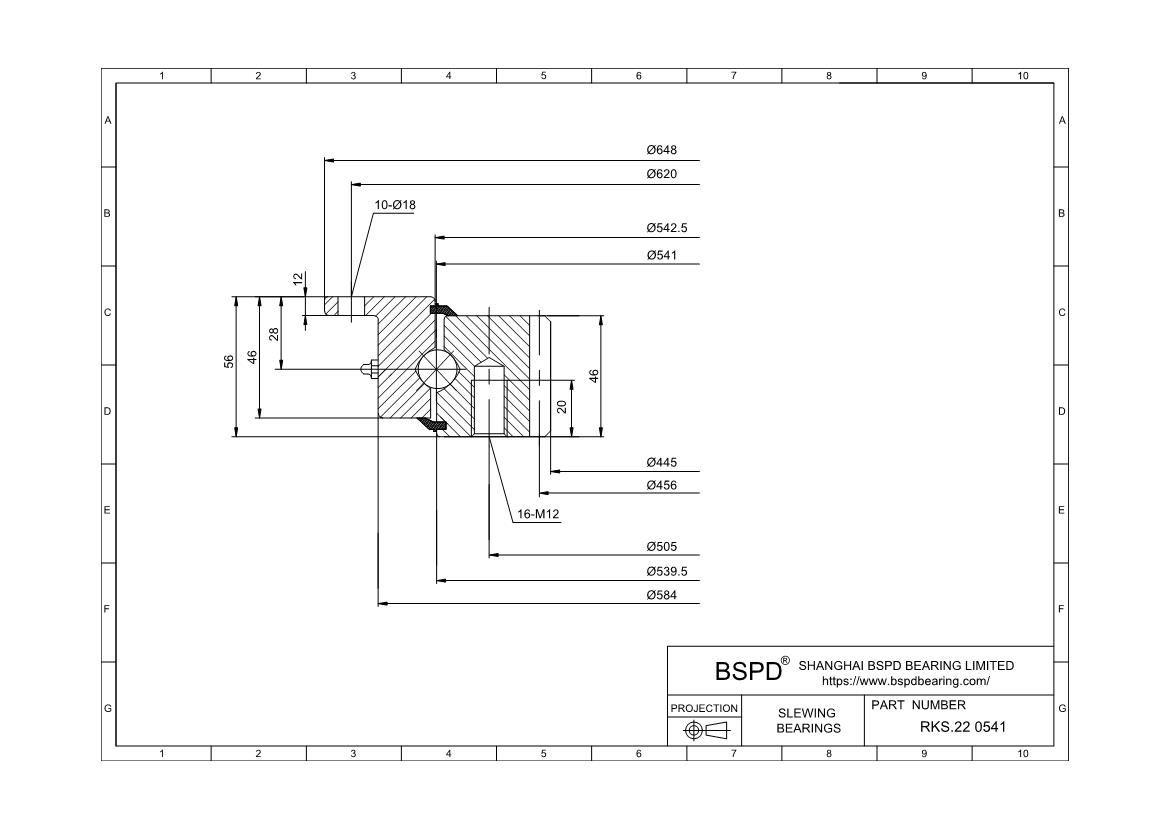

RKS.22 0541
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 445 mm； Outer Diameter: 648 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.22 0541 |
| Gear | internal gear |
| Geometry | |
| weight | 41,0 |
| dm | 541 |
| D | 648 |
| D1 | 584 |
| D2 | 542,5 |
| d | 445 |
| d2 | 539,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 620 |
| Ke | 18 |
| Ne | 10 |
| inner ring | |
| Ji | 505 |
| Ki | M 12 |
| Ni | 16 |
| Gear Data | |
| Gear Dimensions(d01) | 456 |
| Module(m) | 6 |
| Number of teeth(z) | 76 |
| Permissible tooth forces T(fnormal) | 16 |
| Permissible tooth forces T(fMAX) | 65 |
| Basic load ratings | |
| axial dynamic (C) | 188 |
| static (C0) | 380 |
| Static limitingload diagram | |
| Raceway curves | r2 |
| Bolt curves | b2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.22 0541 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
