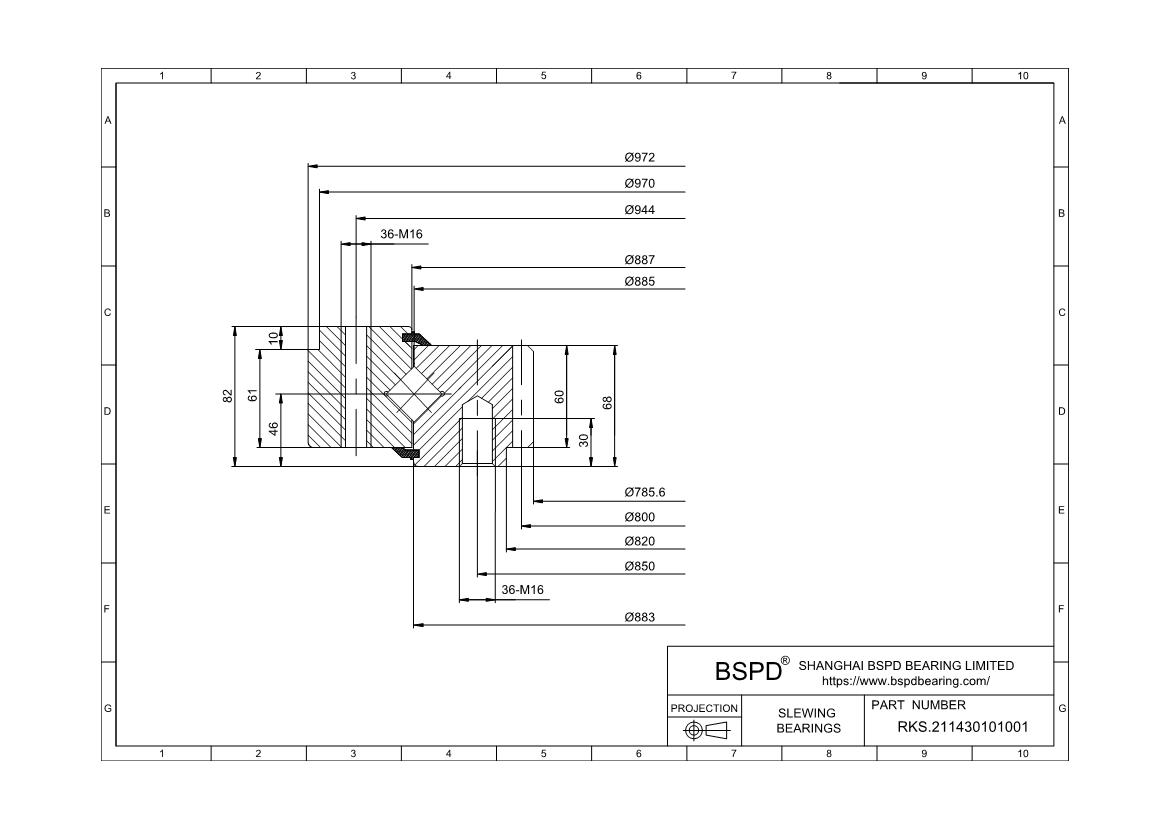

RKS. 211430101001 SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 785.6 mm； Outer Diameter: 972 mm； Width (Thickness): ;

Product Attributes

Specifications
Part Number	RKS. 211430101001
Gear	internal gear
Geometry
weight	110
dm	885
D	972
d	785,6
H	82
H1	46
Outer ring
D1	970
D2	887
D3
C	61
C1	10
inner ring
d1	883
d2	820
B	68
B1	60
De-sign
Attachment bolt holes
Outer ring
Je	944
Ke	M 16
Ne	36
inner ring
Ji	850
Ki	M 16
Ni	36
Gear Data
Gear Dimensions(d01)	800
Module(m)	8
Number of teeth(z)	100
x·m
k·m	0,8
Permissible tooth forces T(fnormal)	66
Permissible tooth forces T(fMAX)	133
Basic load ratings
axial dynamic (C)	427
static (C0)	1 980
Static limitingload diagram
Raceway curves	r3
Bolt curves	b3
