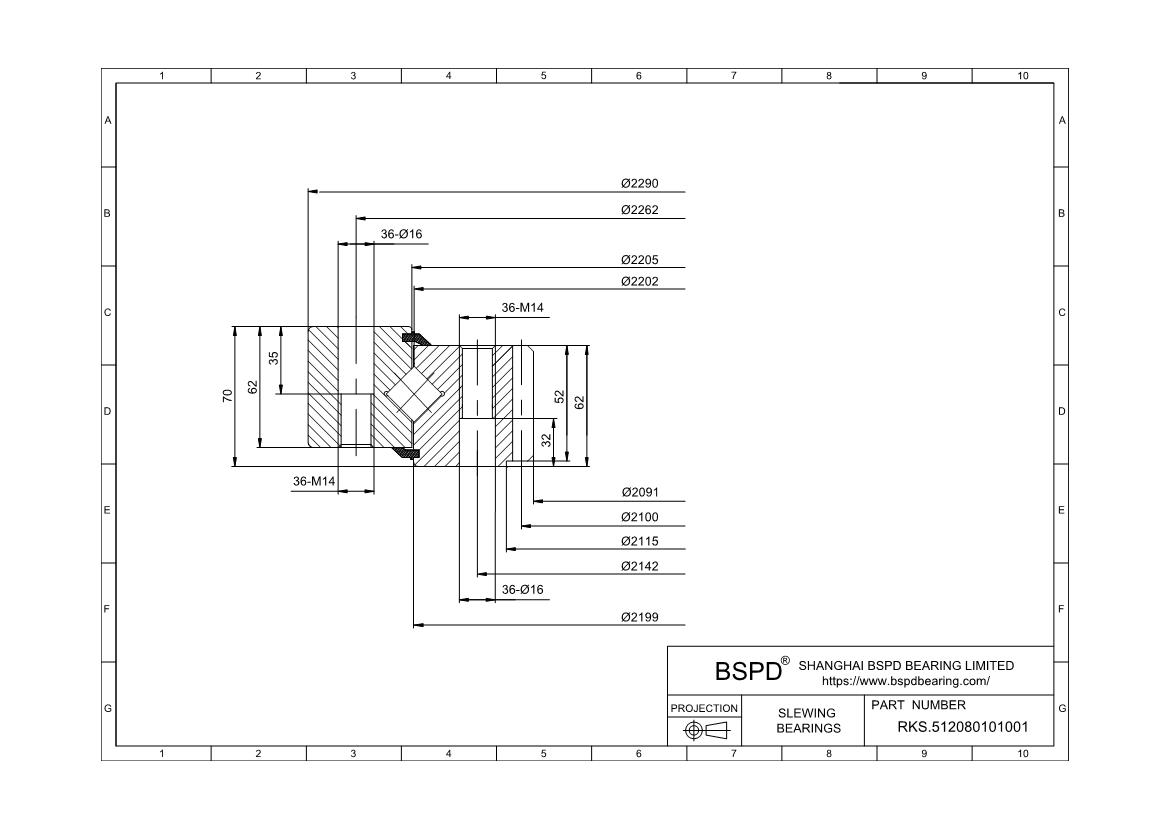

RKS. 512080101001 SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 2091 mm； Outer Diameter: 2290 mm； Width (Thickness): ;

Product Attributes

Specifications
Part Number	RKS. 512080101001
Gear	internal gear
Geometry
weight	290
dm	2 202
D	2 290
d	2 091
H	70
H1	35
Outer ring
D1
D2	2 205
D3
C	62
C1
inner ring
d1	2199
d2	2 115
B	62
B1	52
De-sign
Attachment bolt holes
Outer ring
Je	2 262
Ke	M 14
Ne	36
inner ring
Ji	2 142
Ki	M 14
Ni	36
Gear Data
Gear Dimensions(d01)	2 100
Module(m)	5
Number of teeth(z)	420
x·m
k·m	0,5
Permissible tooth forces T(fnormal)	31
Permissible tooth forces T(fMAX)	61
Basic load ratings
axial dynamic (C)	838
static (C0)	5 680
Static limitingload diagram
Raceway curves	r11
Bolt curves	b11
