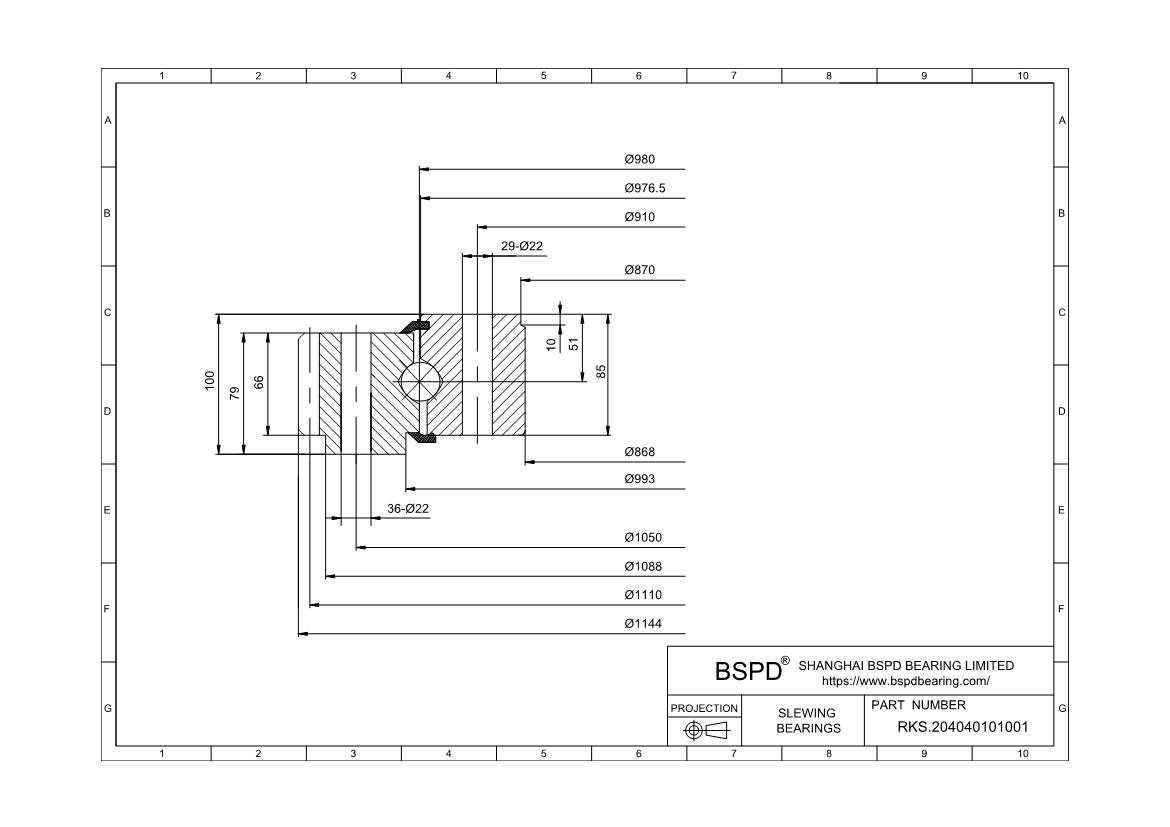

RKS.204040101001
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 868 mm； Outer Diameter: 1144 mm； Width (Thickness): 100 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.204040101001 |
| Gear | external gear |
| Geometry | |
| weight | 220 |
| dm | 980 |
| D | 1 144 |
| D1 | |
| d | 868 |
| d1 | |
| H | 100 |
| H1 | 51 |
| Outer ring | |
| D1 | 1 088 |
| D2 | 993 |
| C | 79 |
| C1 | 66 |
| inner ring | |
| d1 | 870 |
| d2 | 976,5 |
| B | 85 |
| B1 | 10 |
| De-sign | |
| Attachment bolt holes | |
| Outer ring | |
| Je | 1 050 |
| Ke | 22 |
| Ne | 36 |
| inner ring | |
| Ji | 910 |
| Ki | 22 |
| Ni | 29 |
| Gear Data | |
| Gear Dimensions(d01) | 1 110 |
| Module(m) | 10 |
| Number of teeth(z) | 111 |
| x·m | 8 |
| k·m | 1 |
| Permissible tooth forces T(fnormal) | 65 |
| Permissible tooth forces T(fMAX) | 132 |
| Basic load ratings | |
| axial dynamic (C) | 588 |
| static (C0) | 4 470 |
| Static limitingload diagram | |
| Raceway curves | r1 |
| Bolt curves | b1 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.204040101001 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
