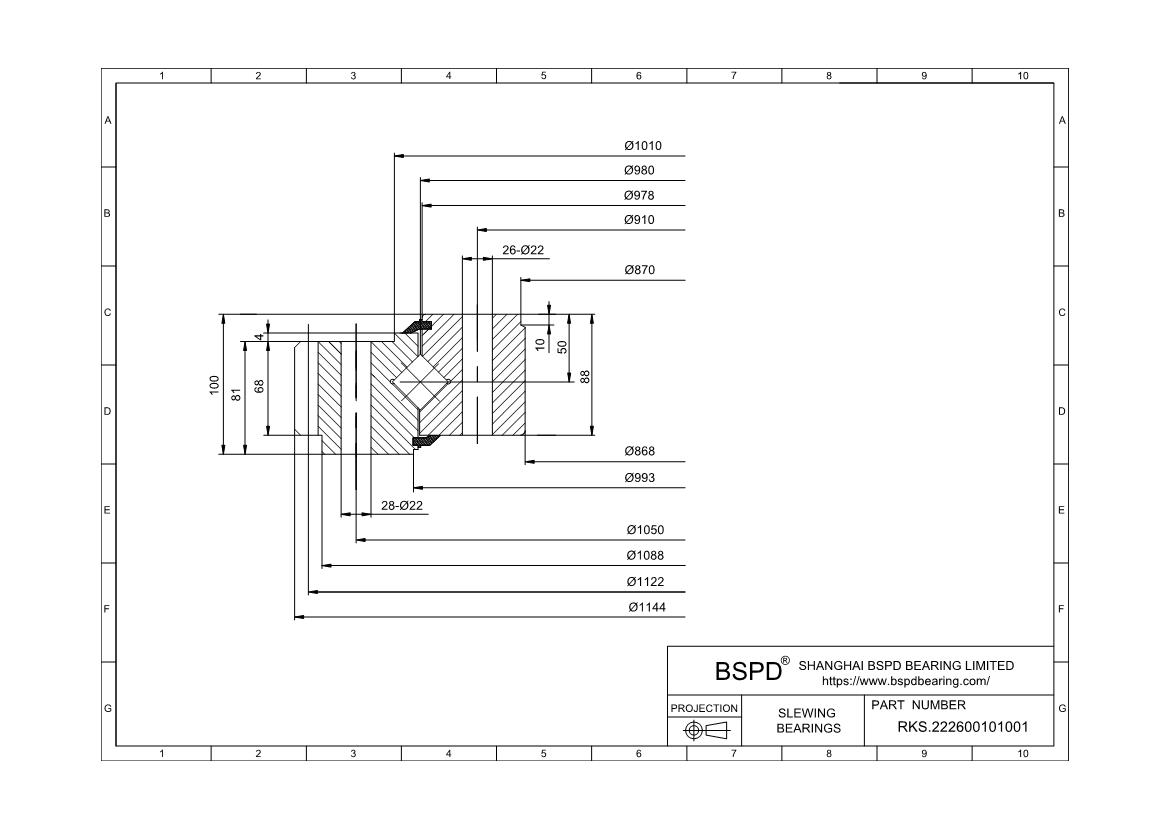

RKS.222600101001
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 868 mm； Outer Diameter: 1144 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.222600101001 |
| Gear | external gear |
| Geometry | |
| weight | 230 |
| dm | 980 |
| D | 1 144 |
| d | 868 |
| H | 100 |
| H1 | 50 |
| Outer ring | |
| D1 | 1 088 |
| D2 | 993 |
| D3 | 1 010 |
| C | 81 |
| C1 | 68 |
| inner ring | |
| d1 | 978 |
| d2 | 870 |
| B | 88 |
| B1 | 10 |
| De-sign | |
| Attachment bolt holes | |
| Outer ring | |
| Je | 1 050 |
| Ke | 22 |
| Ne | 283) |
| inner ring | |
| Ji | 910 |
| Ki | 22 |
| Ni | 263) |
| Gear Data | |
| Gear Dimensions(d01) | 1 122 |
| Module(m) | 11 |
| Number of teeth(z) | 102 |
| x·m | |
| k·m | |
| Permissible tooth forces T(fnormal) | 89 |
| Permissible tooth forces T(fMAX) | 163 |
| Basic load ratings | |
| axial dynamic (C) | 607 |
| static (C0) | 2 740 |
| Static limitingload diagram | |
| Raceway curves | r8 |
| Bolt curves | b8 |
