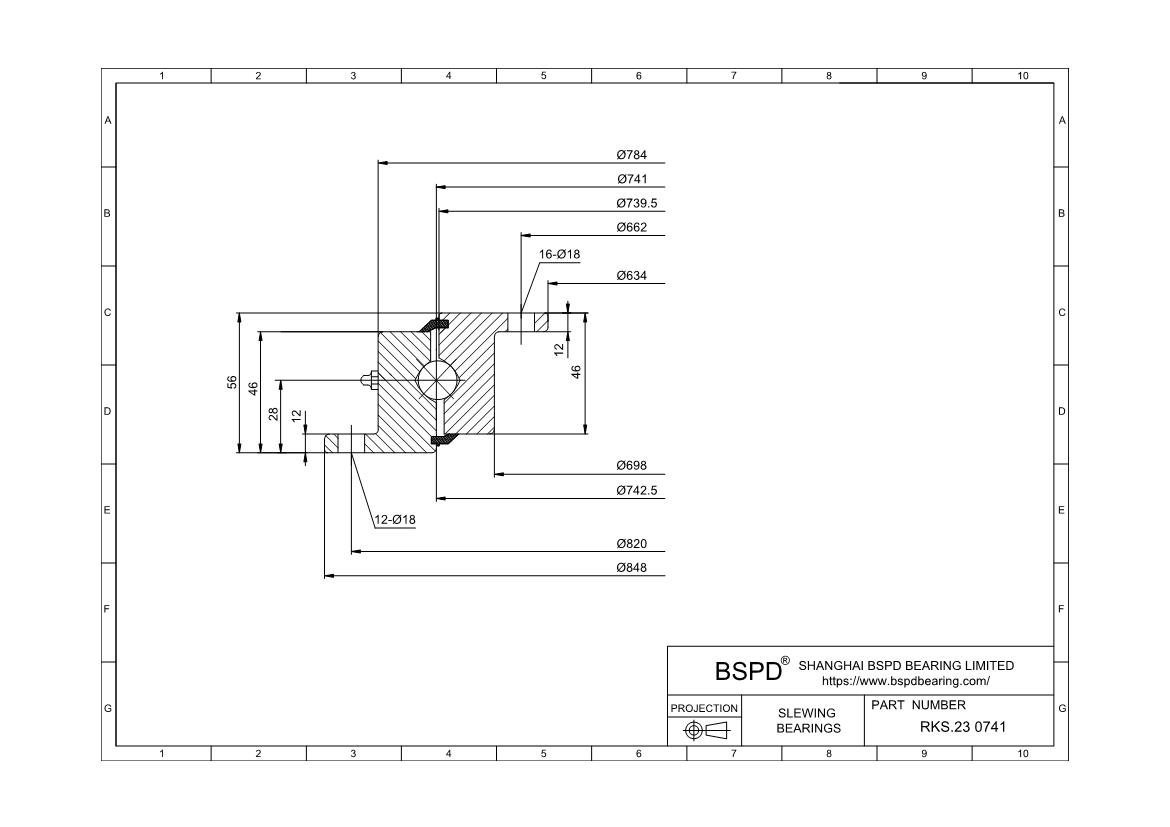

RKS.23 0741
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 634 mm； Outer Diameter: 848 mm； Width (Thickness): 56mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.23 0741 |
| Gear | without a gear |
| Geometry | |
| weight | 43,0 |
| dm | 741 |
| D | 848 |
| D1 | 784 |
| D2 | 742,5 |
| d | 634 |
| d1 | 698 |
| d2 | 739,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 820 |
| Ke | 18 |
| Ne | 12 |
| inner ring | |
| Ji | 662 |
| Ki | 18 |
| Ni | 16 |
| Basic load ratings | |
| axial dynamic (C) | 211 |
| static (C0) | 524 |
| Static limitingload diagram | |
| Raceway curves | r4 |
| Bolt curves | b4 |
Print PDF
Request a 3D CAD Model
