RKS.921155203001 SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 233 mm; Outer Diameter: 403.5 mm; Width (Thickness): ;

RKS.921155203001
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number RKS.921155203001
Gear without a gear

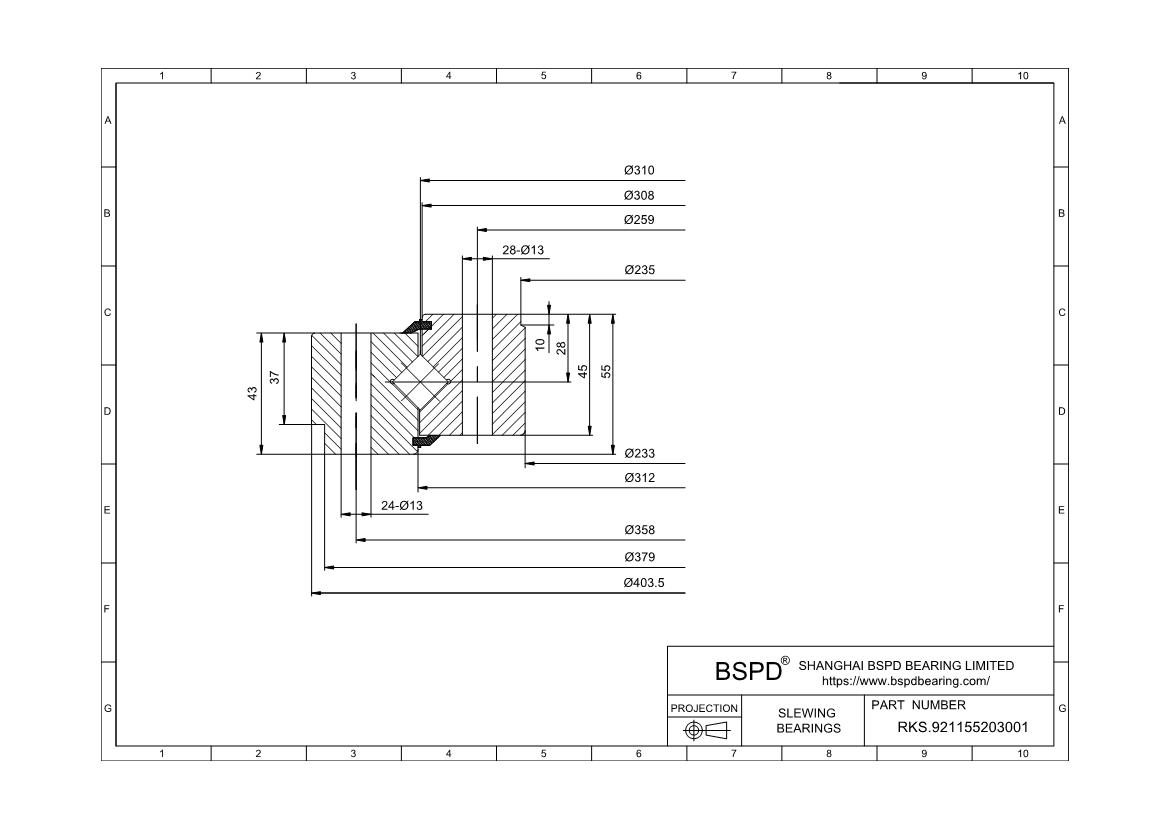

Geometry
weight 25,0
dm 310
D 403,5
d 233
H 55
H1 28
Outer ring
D1 379
D2 312
D3
C 43
C1 37
inner ring
d1 308
d2 235
B 45
B1 10
De-sign
Attachment bolt holes
Outer ring
Je 358
Ke 13
Ne 24
inner ring
Ji 259
Ki 13
Ni 281)
Gear Data
Gear Dimensions(d01)
Module(m)
Number of teeth(z)
x·m
k·m
Permissible tooth forces T(fnormal)
Permissible tooth forces T(fMAX)
Basic load ratings
axial dynamic (C) 245
static (C0) 697
Static limitingload diagram
Raceway curves r1
Bolt curves b1
RKS.921155203001
