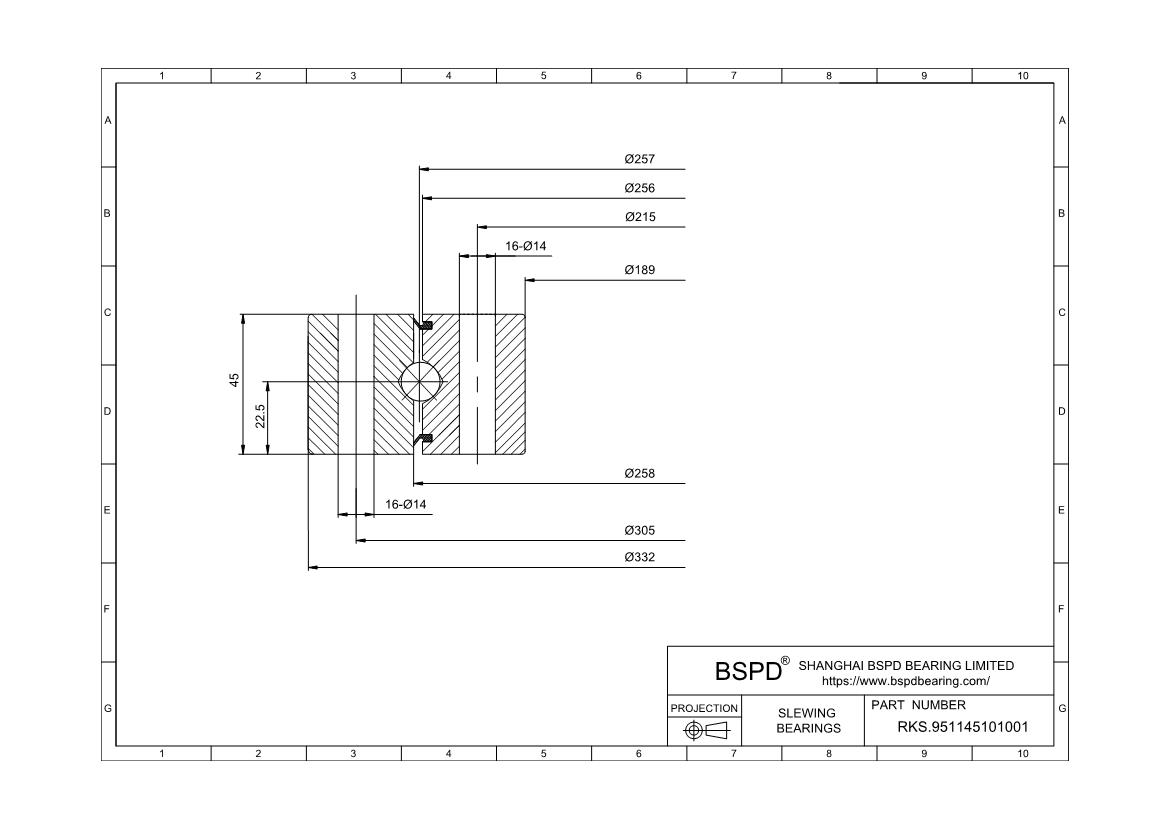

RKS.951145101001
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 189 mm； Outer Diameter: 332 mm； Width (Thickness): 45 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.951145101001 |
| Gear | without a gear |
| Geometry | |
| weight | 17,0 |
| dm | 257 |
| D | 332 |
| D1 | 258 |
| d | 189 |
| d1 | 256 |
| H | 45 |
| H1 | 22,5 |
| Outer ring | |
| D1 | |
| D2 | |
| C | |
| C1 | |
| inner ring | |
| d1 | |
| d2 | |
| B | |
| B1 | |
| De-sign | |
| Attachment bolt holes | |
| Outer ring | |
| Je | 305 |
| Ke | 14 |
| Ne | 16 |
| inner ring | |
| Ji | 215 |
| Ki | 14 |
| Ni | 16 |
| Gear Data | |
| Gear Dimensions(d01) | |
| Module(m) | |
| Number of teeth(z) | |
| x·m | |
| k·m | |
| Permissible tooth forces T(fnormal) | |
| Permissible tooth forces T(fMAX) | |
| Basic load ratings | |
| axial dynamic (C) | 239 |
| static (C0) | 675 |
| Static limitingload diagram | |
| Raceway curves | r2 |
| Bolt curves | b2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.951145101001 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
