VI160420-N
INA Slewing Bearings

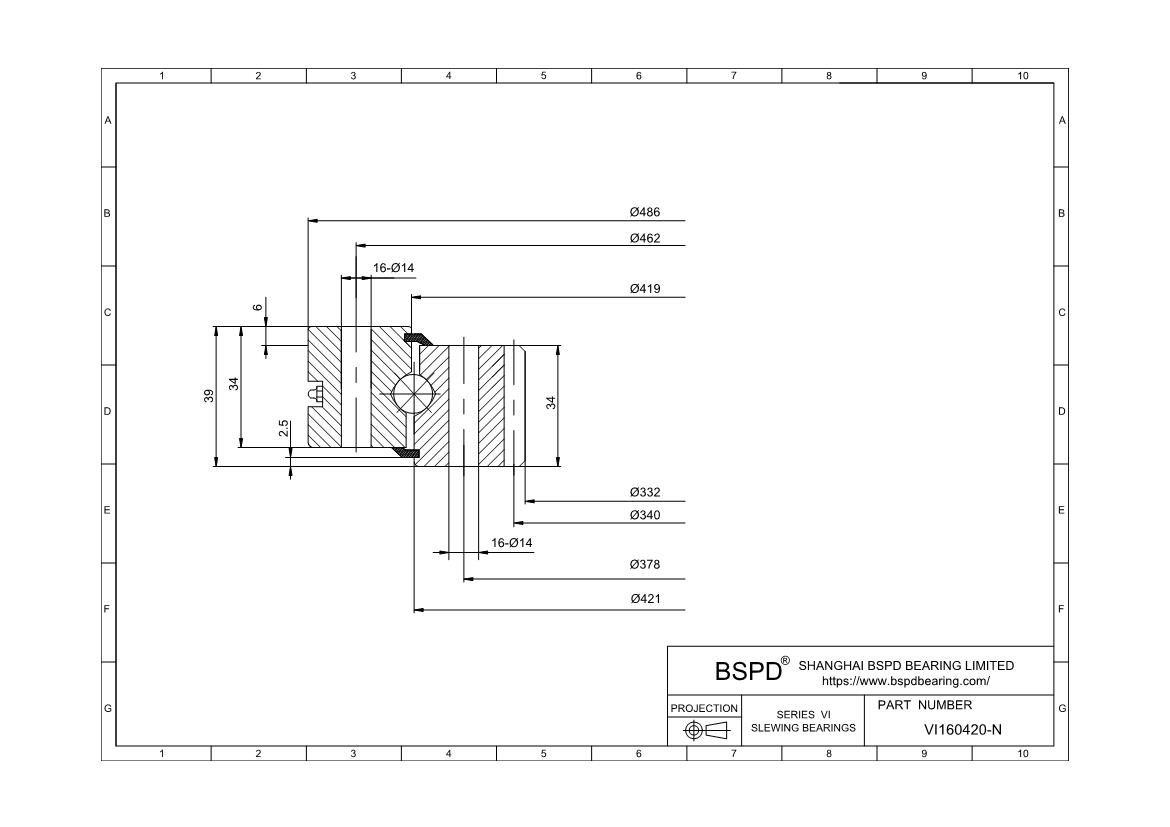

Dimensions: Bore (Inner) Diameter: 332 mm； Outer Diameter: 486 mm； Width (Thickness): 39 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VI160420-N |
| di | 332 mm |
| Da | 486 mm |
| b | 34 mm |
| DaZT | 484 mm Tolerance: -IT8 |
| Di | 419 mm |
| d0 | 340 mm |
| da | 421 mm |
| daZT | 419 mm Tolerance: -IT8 |
| dB | 14 mm |
| H | 39 mm |
| h | 34 mm |
| La | 462 mm |
| Li | 378 mm |
| m | 4 mm |
| na | 16 |
| ni | 16 |
| T | 6 mm |
| t | 2,5 mm |
| u | - |
| Number of teeth(z) | 85 |
| weight(w) | 23 kg |
| Maximum permissible radial load against friction lock(Frper) | 66100 N |
| Maximum permissible tooth force (dedendum fatigue strength) Fznorm | 12300 N |
| Max. permissible tooth force against tooth fracture in dedendum(Fzmax) | 17800 N |
| Basic dynamic load rating, axial(Ca) | 169000 N |
| Basic static load rating, axial(C0a) | 850000 N |
| Basic dynamic load rating, radial(Cr) | 153000 N |
| Basic static load rating, radial(C0r) | 390000 N |
| Min. radial bearing clearance | 0,04 |
| Maximum radial bearing clearance | 0,16 |
| Min. axial tilting clearance | 0,07 |
| Maximum axial tilting clearance | 0,26 |
| Taper type lubrication nipples, DIN 71412-A M10x1, spaced uniformly on circumference and partially recessed | 2 |
| Lip seals on both spides | YES |
