VSA200944-N INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 872 mm Tolerance: +0,7/0; Outer Diameter: 1046,1 mm; Width (Thickness): 56 mm;

VSA200944-N
REQUEST FOR QUOTE
* *
Send

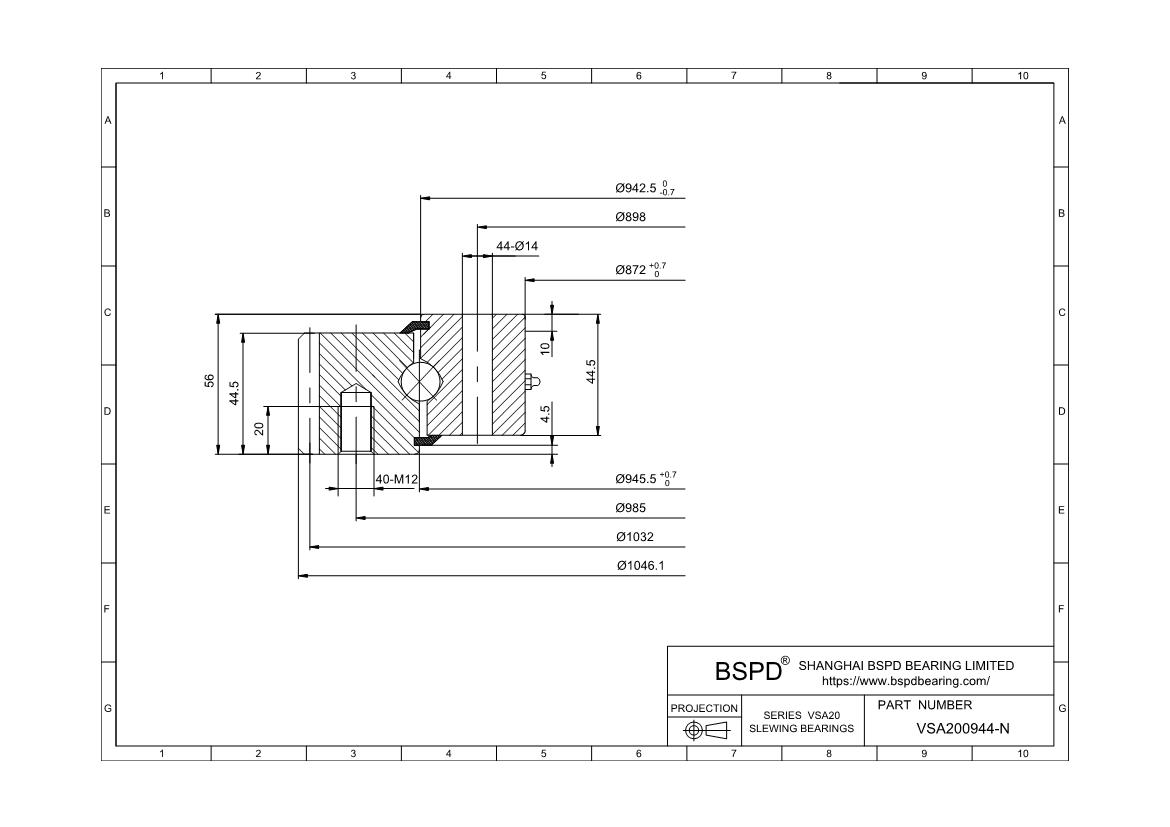

Product Attributes
Specifications
Part Number VSA200944-N
di 872 mm Tolerance: +0,7/0
Da 1046,1 mm
Di 945,5 mm Tolerance: +0,7/0
DiZT 947 mm Tolerance: +IT8
d0 1032 mm
da 942,5 mm Tolerance: 0/-0,7
diZT 874 mm Tolerance: +IT8
H 56 mm
La 985 mm
Li 898 mm
Tooth modulus 8 mm
Number of fixing holes in outer ring(na) 40
Number of fixing holes in inner ring(ni) 44
Number of teeth(z) 129
weight(w) 77 kg
Maximum permissible radial load against friction lock(Frper) 165200 N
Maximum permissible tooth force (dedendum fatigue strength) Fznorm 28300 N
Max. permissible tooth force against tooth fracture in dedendum(Fzmax) 42000 N
Basic dynamic load rating, axial(Ca) 189000 N
Basic static load rating, axial(C0a) 1520000 N
Basic dynamic load rating, radial(Cr) 171000 N
Basic static load rating, radial(C0r) 690000 N
Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference 4
VSA200944-N
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
