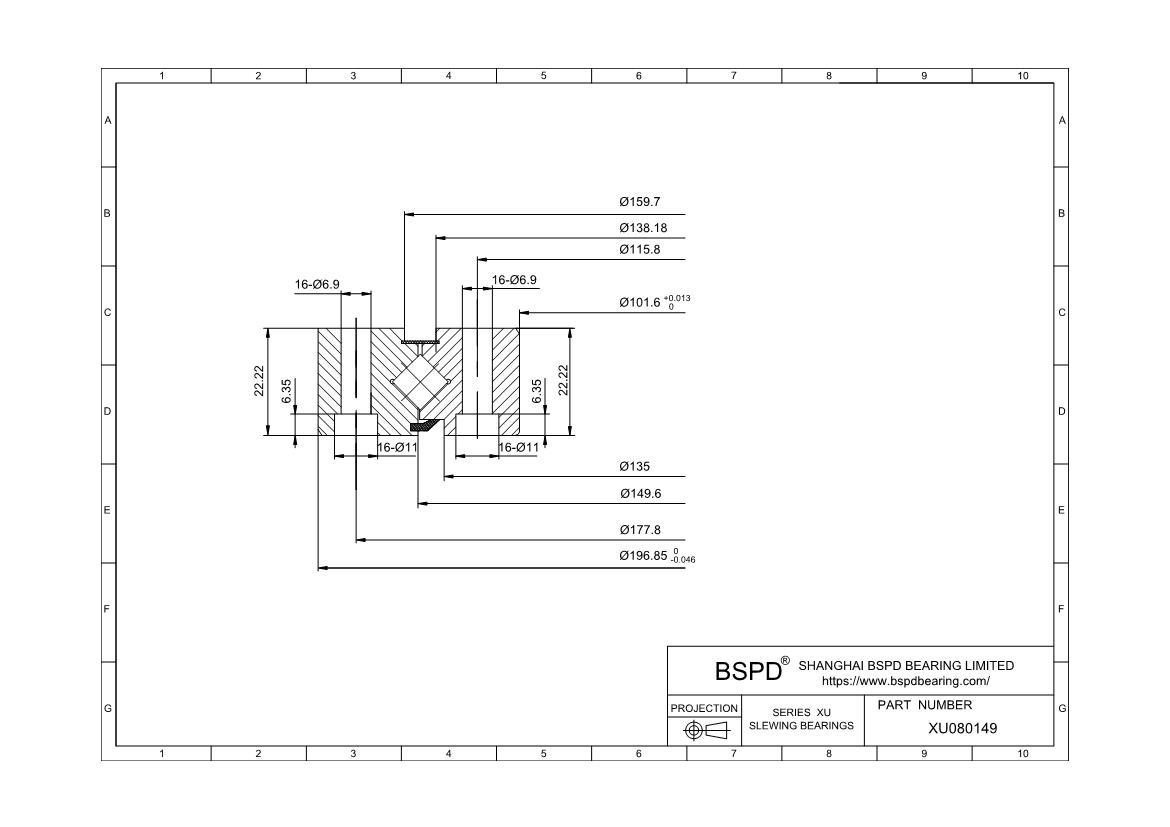

XU080149
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 101,6 mm； Outer Diameter: 196,85 mm； Width (Thickness): 22.22 mm;
REQUEST FOR QUOTE
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Specifications | |
| Part Number | XU080149 |
| di | 101,6 mm |
| Da | 196,85 mm |
| DaZT | 196,85 mm |
| Di | 149,6 mm |
| da | |
| dB | 6,9 mm |
| dS | 11 mm |
| H | 22,22 mm |
| h | 22,22 mm |
| La | 177,8 mm |
| Li | 115,8 mm |
| Number of fixing holes in outer ring(na) | 16 |
| Number of fixing holes in inner ring(ni) | 16 |
| tS | 6,35 mm |
| weight(w) | 3.6 kg |
| Maximum permissible radial load against friction lock(Frper) | 15400 N |
| Basic dynamic load rating, axial(Ca) | 55000 N |
| Basic static load rating, axial(C0a) | 80000 N |
| Basic dynamic load rating, radial(Cr) | 39500 N |
| Basic static load rating, radial(C0r) | 39500 N |
| Bearing clearance: preload(VSPmin) | 0,005 |
| Bearing clearance: preload(VSPmax) | 0,02 |
| With lip seal and special seal | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
