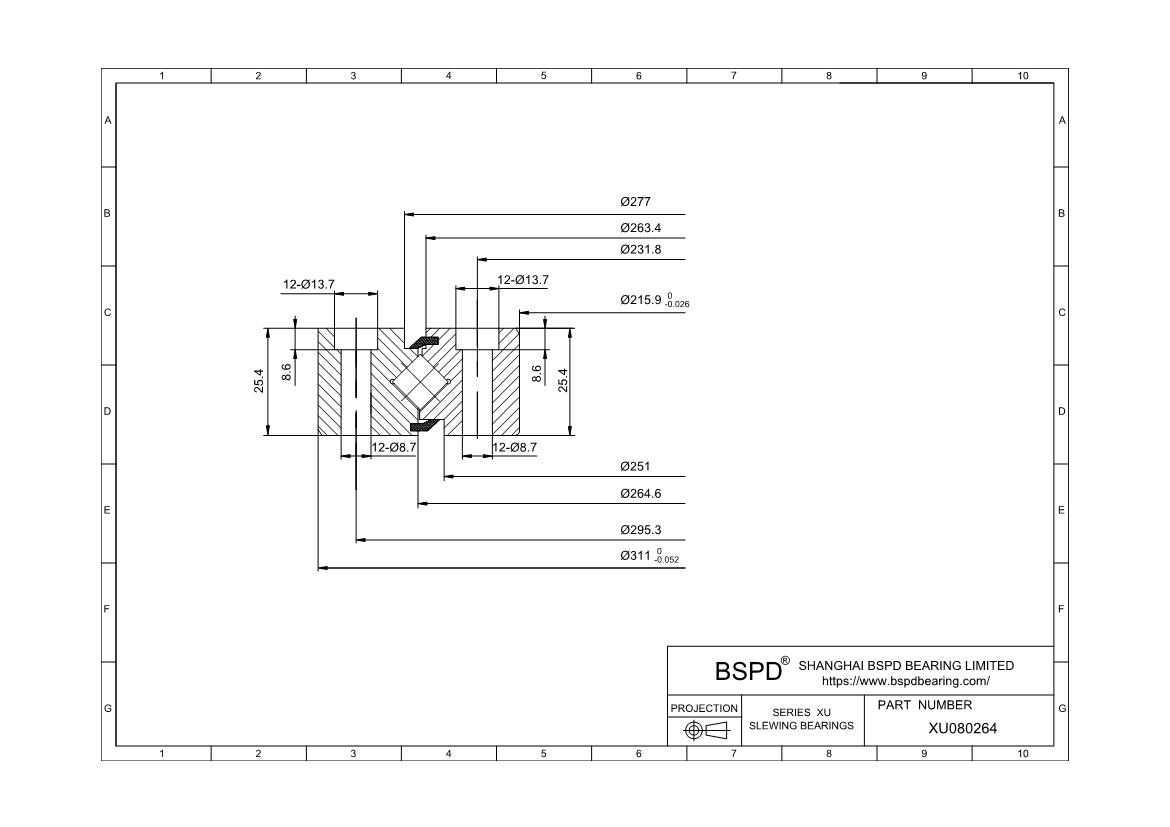

XU080264
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 215,9 mm； Outer Diameter: 311 mm； Width (Thickness): 25.4 mm;
REQUEST FOR QUOTE
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Specifications | |
| Part Number | XU080264 |
| di | 215,9 mm |
| Da | 311 mm |
| DaZT | |
| Di | 264,6 mm |
| da | 263,4 mm |
| dB | 8,7 mm |
| dS | 13,7 mm |
| H | 25,4 mm |
| h | 25,4 mm |
| La | 295,3 mm |
| Li | 231,8 mm |
| Number of fixing holes in outer ring(na) | 12 |
| Number of fixing holes in inner ring(ni) | 12 |
| tS | 8,6 mm |
| weight(w) | 6.9 kg |
| Maximum permissible radial load against friction lock(Frper) | 21000 N |
| Basic dynamic load rating, axial(Ca) | 80000 N |
| Basic static load rating, axial(C0a) | 156000 N |
| Basic dynamic load rating, radial(Cr) | 57000 N |
| Basic static load rating, radial(C0r) | 76000 N |
| Bearing clearance: preload(VSPmin) | |
| Bearing clearance: preload(VSPmax) | 0,02 |
| With lip seal and special seal | |
