XU120179
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 124,5 mm； Outer Diameter: 234 mm； Width (Thickness): 35 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | XU120179 |
| di | 124,5 mm |
| Da | 234 mm |

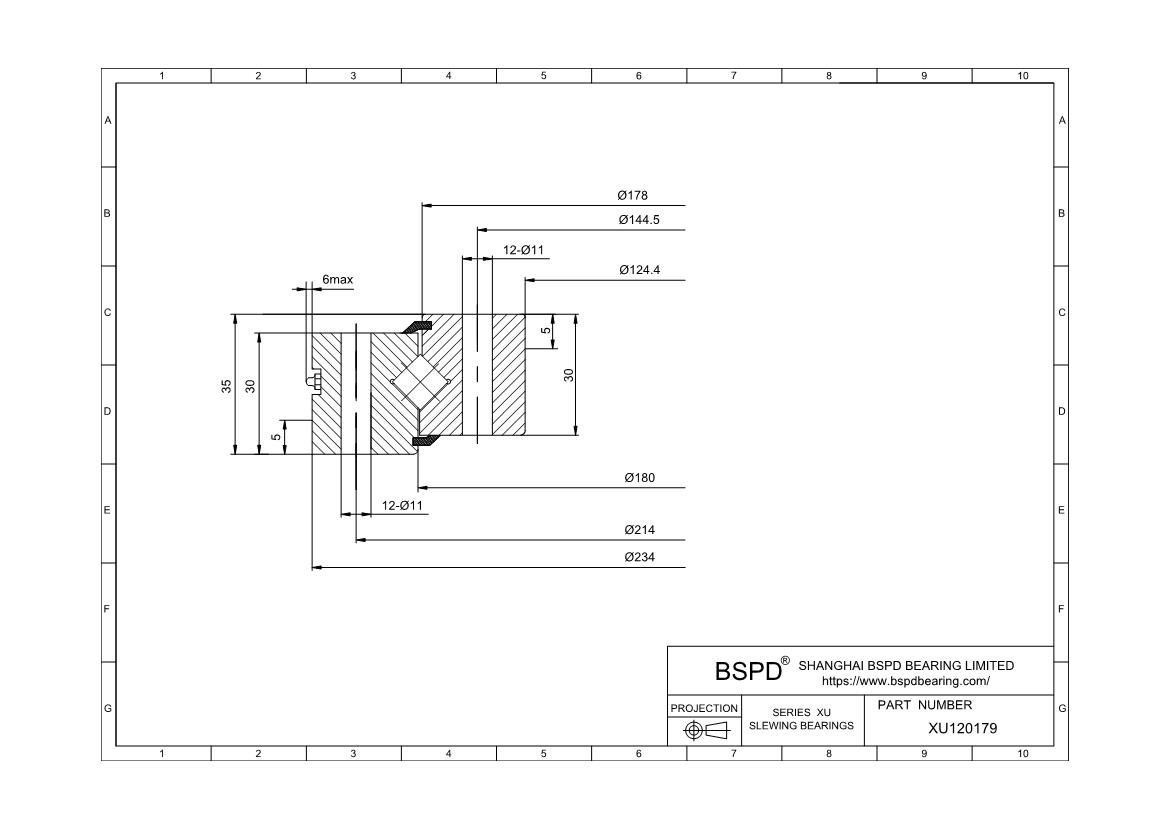

| DaZT | 232 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: -IT8 |
| Di | 180 mm Tolerance: +/-0,2 |
| da | 178 mm Tolerance: +/-0,2 |
| dB | 11 mm |
| dS | 126,5 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: +IT8 |
| H | 35 mm |
| h | 30 mm |
| La | 214 mm |
| Li | 144,5 mm |
| Number of fixing holes in outer ring(na) | 12 |
| Number of fixing holes in inner ring(ni) | 12 |
| tS | 5 mm |
| weight(w) | 7 kg |
| Maximum permissible radial load against friction lock(Frper) | 33600 N |
| Basic dynamic load rating, axial(Ca) | 105000 N |
| Basic static load rating, axial(C0a) | 194000 N |
| Basic dynamic load rating, radial(Cr) | 75000 N |
| Basic static load rating, radial(C0r) | 95000 N |
| Bearing clearance: preload(VSPmin) | |
| Bearing clearance: preload(VSPmax) | 0,02 |
| With lip seal and special seal | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings XU120179 ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
