A12-32P2
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 27.13"； Outer Diameter: 36.25"； Width (Thickness): 3.25";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A12-32P2 |
| Raceway Moment (ft-lbs) | 536000 |
| Compressive Thrust(lbs) | 893000 |
| Weight(lbs) | 316 |

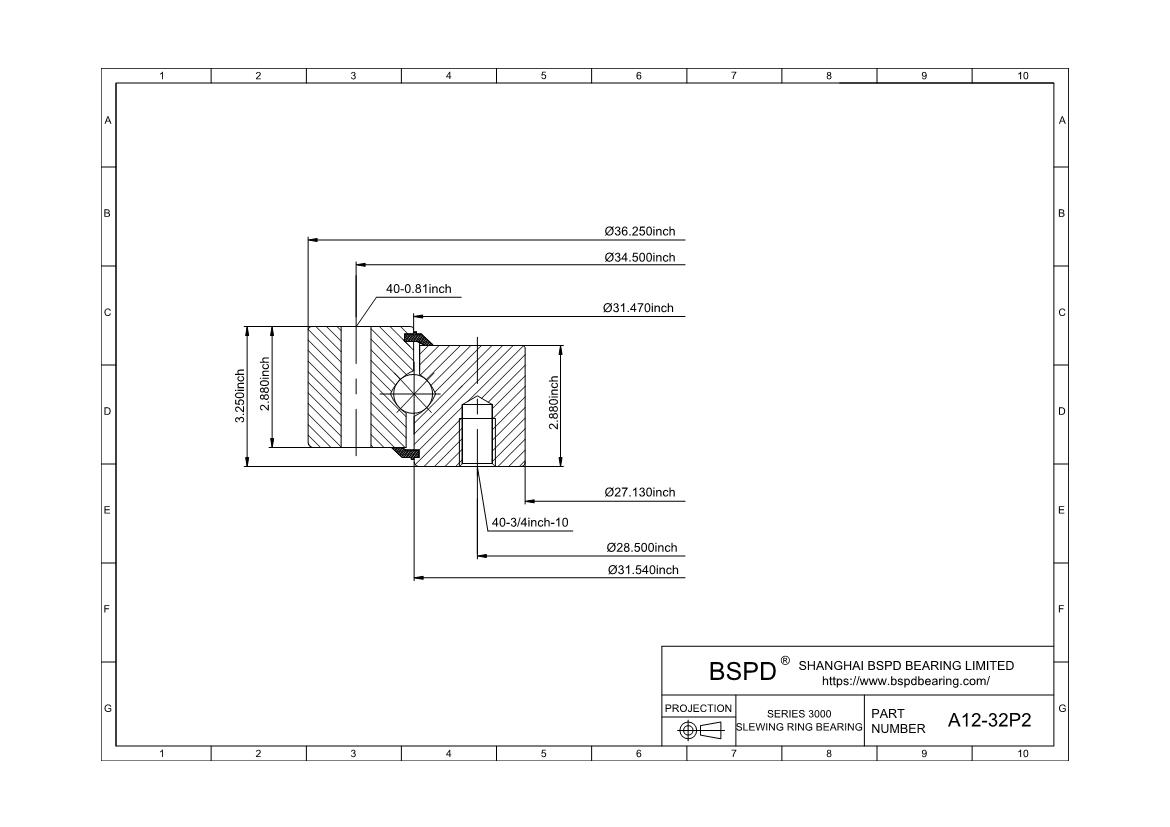

| Outline Dimensions(inches) | |
| OD | 36.25 |
| ID | 27.13 |
| OE | - |
| OI | 31.47 |
| IO | 31.54 |
| HT | 3.25 |
| OH | 2.88 |
| IH | 2.88 |
| Mounting Holes | |
| OBC | 34.5 |
| OU | 0.81 |
| No of OBC Holes | 40-1 |
| IBC | 28.5 |
| IU | 3/4-10 |
| No of IBC Holes | 40 |
| Hole Figure Style | 3 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A12-32P2 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
