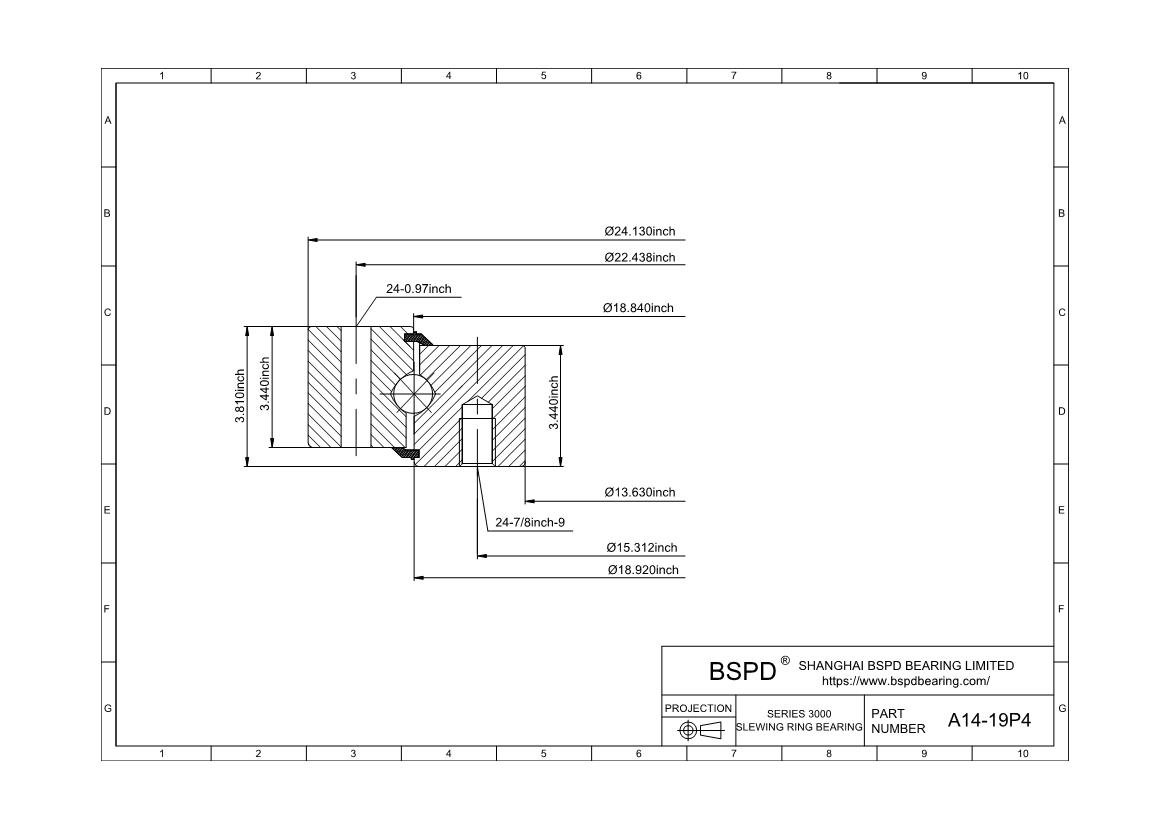

A14-19P4
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 13.63"； Outer Diameter: 24.13"； Width (Thickness): 3.81";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A14-19P4 |
| Raceway Moment (ft-lbs) | 198000 |
| Compressive Thrust(lbs) | 550000 |
| Weight(lbs) | 264 |
| Outline Dimensions(inches) | |
| OD | 24.13 |
| ID | 13.63 |
| OE | - |
| OI | 18.84 |
| IO | 18.92 |
| HT | 3.81 |
| OH | 3.44 |
| IH | 3.44 |
| Mounting Holes | |
| OBC | 22.438 |
| OU | 0.97 |
| No of OBC Holes | 24-1 |
| IBC | 15.312 |
| IU | 7/8-9 |
| No of IBC Holes | 24 |
| Hole Figure Style | 3 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A14-19P4 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
