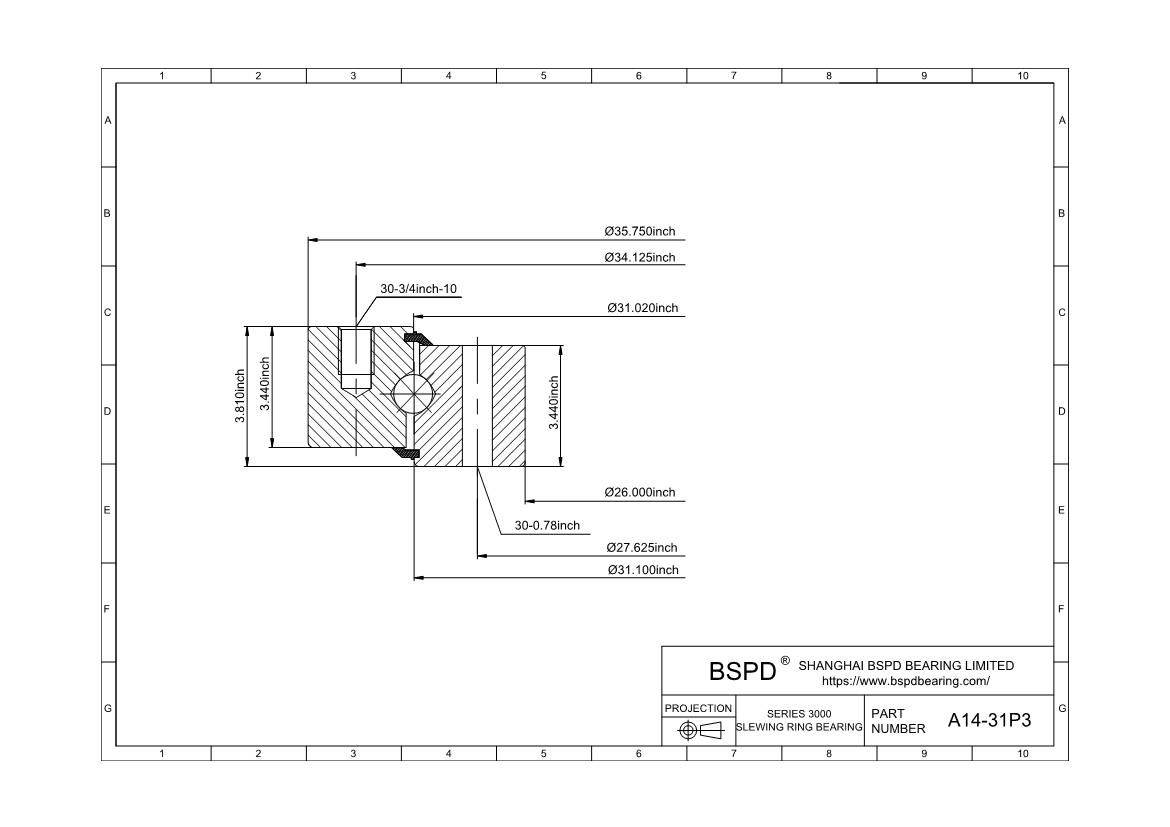

A14-31P3
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 26.0"； Outer Diameter: 35.75"； Width (Thickness): 3.81";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A14-31P3 |
| Raceway Moment (ft-lbs) | 653000 |
| Compressive Thrust(lbs) | 1100000 |
| Weight(lbs) | 406 |
| Outline Dimensions(inches) | |
| OD | 35.75 |
| ID | 26 |
| OE | - |
| OI | 31.02 |
| IO | 31.1 |
| HT | 3.81 |
| OH | 3.44 |
| IH | 3.44 |
| Mounting Holes | |
| OBC | 34.125 |
| OU | 3/4-10 |
| No of OBC Holes | 30-1 |
| IBC | 27.625 |
| IU | 0.78 |
| No of IBC Holes | 30 |
| Hole Figure Style | 4 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
