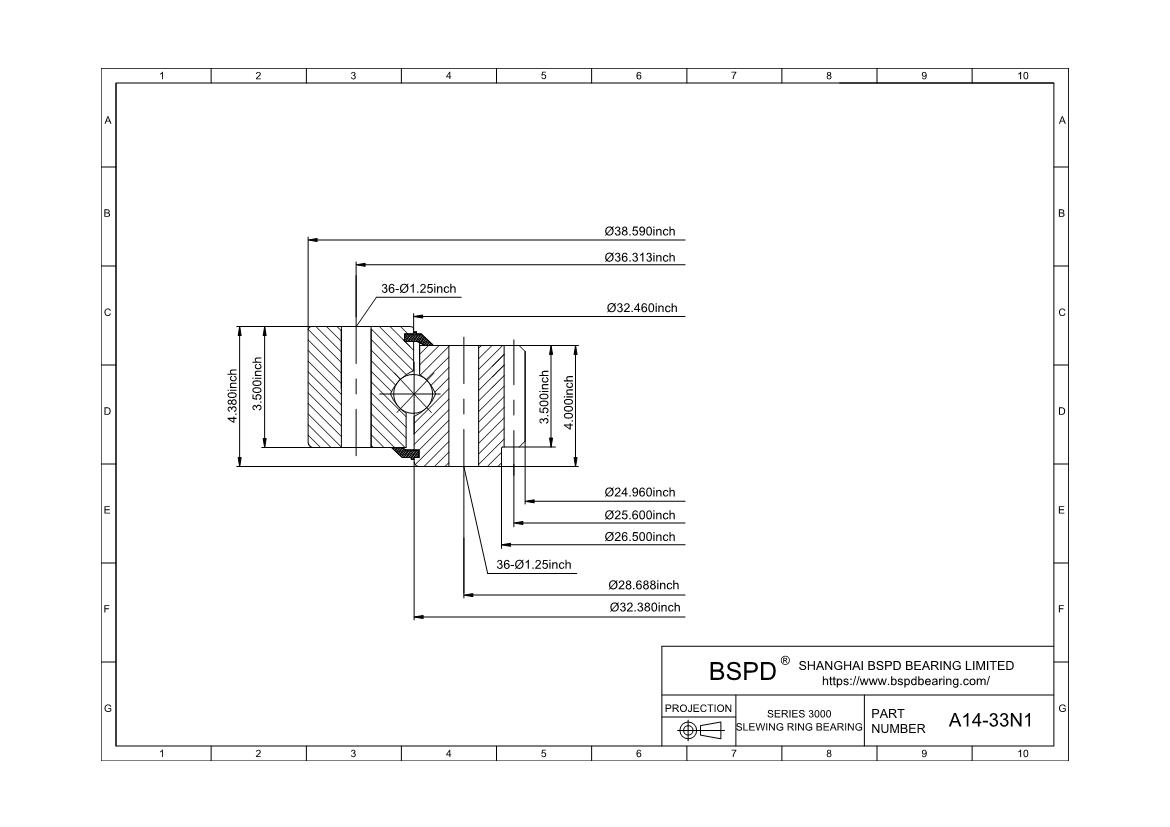

A14-33N1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 24.96"； Outer Diameter: 38.59"； Width (Thickness): 4.38";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A14-33N1 |
| Raceway Moment (ft-lbs) | 723000 |
| Compressive Thrust(lbs) | 1170000 |
| Weight(lbs) | 557 |
| Outline Dimensions(inches) | |
| OD | 38.59 |
| ID | 24.96 |
| OE | 26.5 |
| OI | 32.46 |
| IO | 32.38 |
| HT | 4.38 |
| OH | 3.5 |
| IH | 4 |
| Mounting Holes | |
| OBC | 36.313 |
| OU | 1.25 |
| No of OBC Holes | 36-1 |
| IBC | 28.688 |
| IU | 1.25 |
| No of IBC Holes | 36 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | 25.6 |
| DP | 2.5 |
| NO of Teeth | 64 |
| Tooth From | 20d, Stub |
| F | 3.5 |
| Tangential Gear Capacity(lbs) | 29600 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A14-33N1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
