A18-89E1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 78.38"； Outer Diameter: 99.8"； Width (Thickness): 6.62";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A18-89E1 |
| Raceway Moment (ft-lbs) | 5660000 |
| Compressive Thrust(lbs) | 3360000 |
| Weight(lbs) | 4381 |

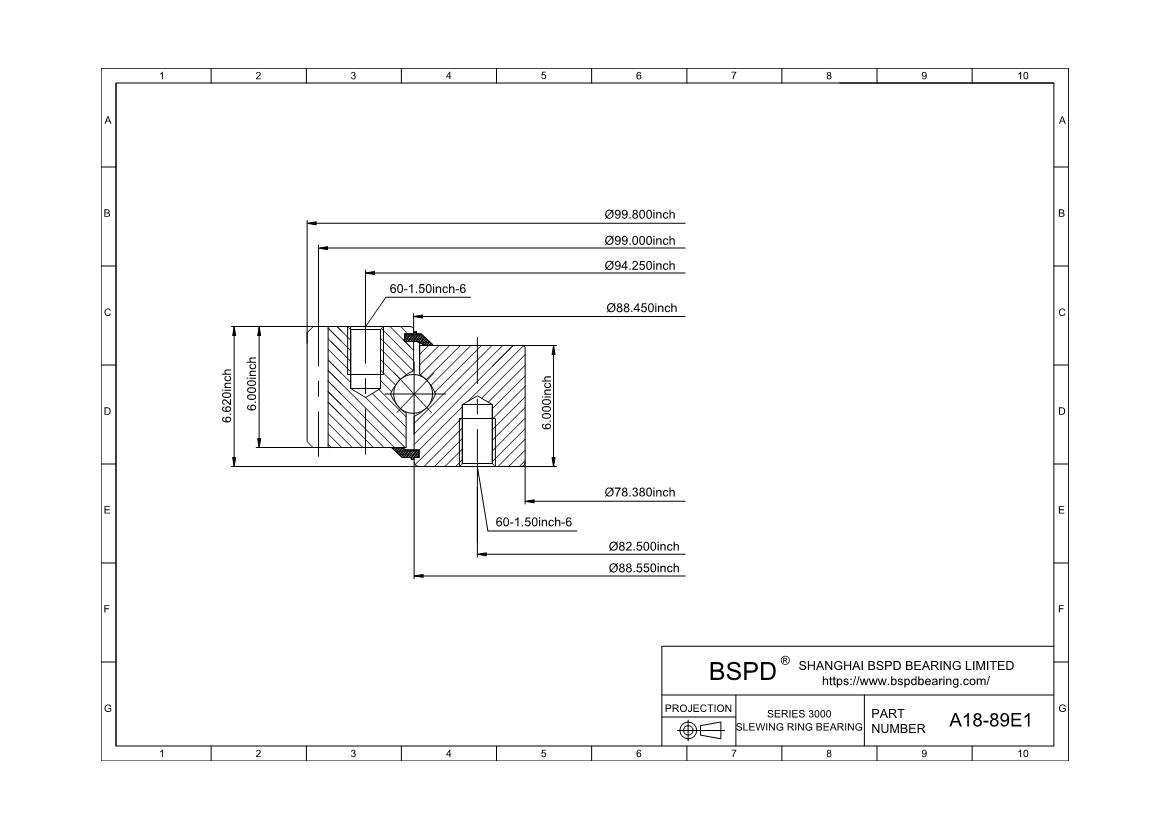

| Outline Dimensions(inches) | |
| OD | 99.8 |
| ID | 78.38 |
| OE | - |
| OI | 88.45 |
| IO | 88.55 |
| HT | 6.62 |
| OH | 6 |
| IH | 6 |
| Mounting Holes | |
| OBC | 94.25 |
| OU | 1.5-6 |
| No of OBC Holes | 60 |
| IBC | 82.5 |
| IU | 1.5-6 |
| No of IBC Holes | 60 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | 99 |
| DP | 2 |
| NO of Teeth | 198 |
| Tooth From | 20d,Stub |
| F | 6 |
| Tangential Gear Capacity(lbs) | 58300 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A18-89E1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
