A6-14E10 Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 10.43"; Outer Diameter: 17.067"; Width (Thickness): 2.24";

A6-14E10
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number A6-14E10
Raceway Moment (ft-lbs) 55000
Compressive Thrust(lbs) 212000
Weight(lbs) 66

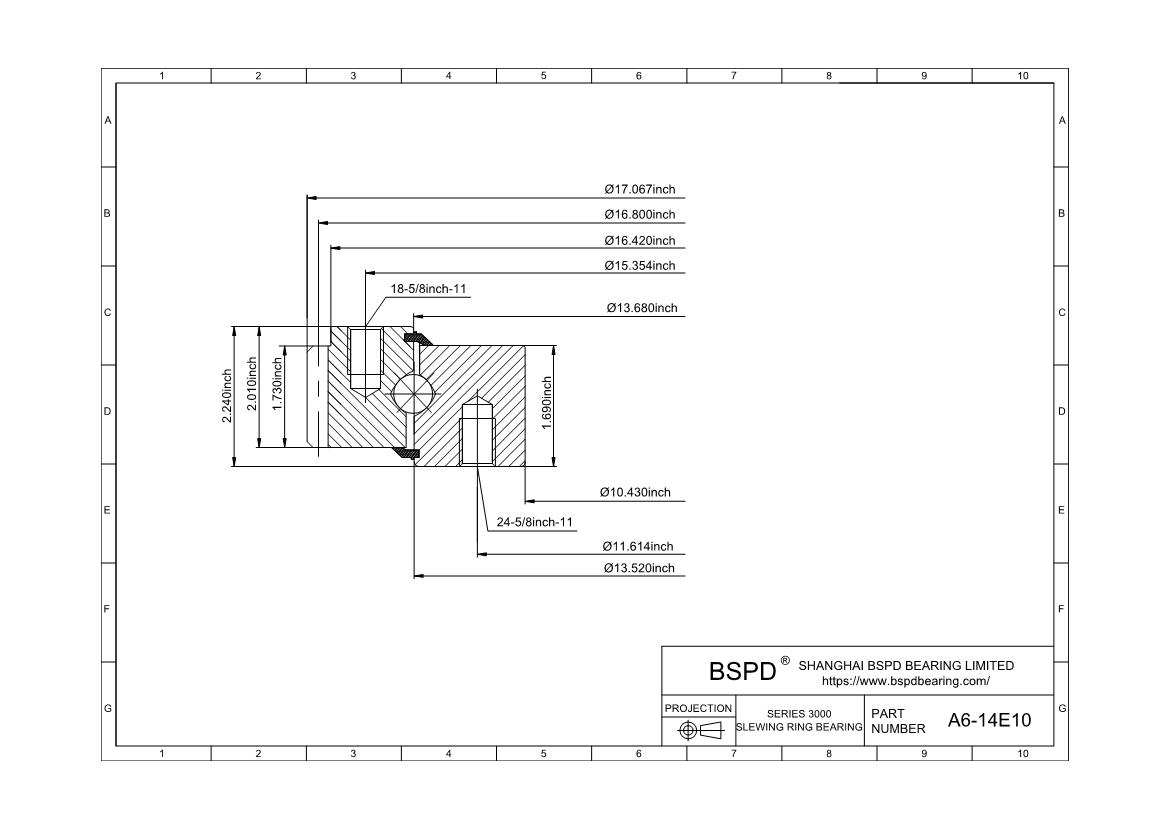

Outline Dimensions(inches)
OD 17.067
ID 10.43
OE 16.42
OI 13.68
IO 13.52
HT 2.24
OH 2.01
IH 1.69
Mounting Holes
OBC 15.354
OU 5/8-11
No of OBC Holes 18
IBC 11.614
IU 5/8-11
No of IBC Holes 24
Hole Figure Style 2
Gear Data
PD 16.8
DP 5
NO of Teeth 84
Tooth From 20d,5/7 Fellows
F 1.73
Tangential Gear Capacity(lbs) 6800
A6-14E10
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
