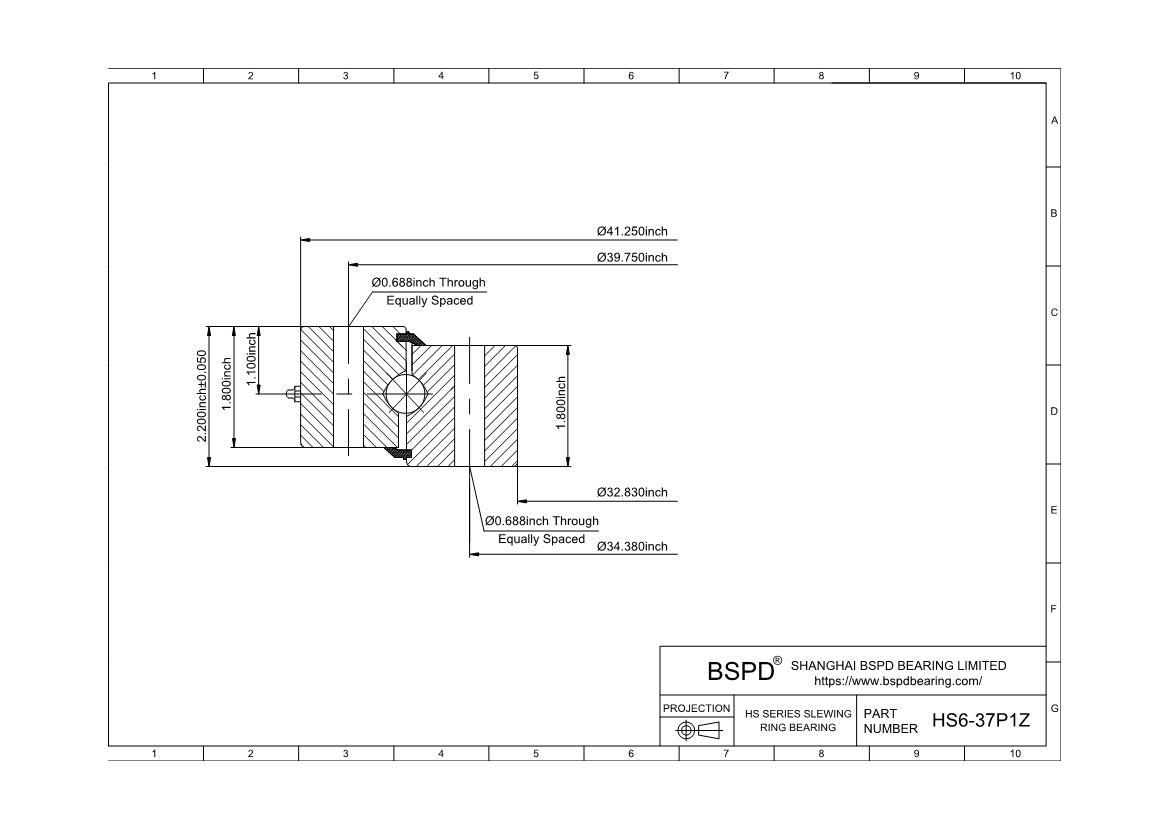

HS6-37P1Z Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 32.83"; Outer Diameter: 41.25"; Width (Thickness): ;

HS6-37P1Z
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
Specifications
Part Number HS6-37P1Z
Moment Load Rating (Crm) 130,900ft-lbs | 584.375KN
Pressure Angle of Gear Teeth (α) 20 º
Maximum Allowable Gear Tooth Load (Fz) -
Bearing Types Slewing Ring Bearing
Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 41.250" | 1047.75mm
Inside Diameter of Inner Ring (di) 32.830" | 833.88mm
Approximate Weight (lb) 233lbs | 105.686KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 39.750" | 1009.65mm
Number Holes in Outer Ring (no) 18
Bolt Circle in Inner Ring (Li) 34.380" | 873.25mm
Number Holes in Inner Ring (ni) 20
Gear Data
Pitch Diameter of Gear (D2) -
Diametral Pitch (Pd) -
Number of Gear Teeth (z2) -
Mating Pinions 39200003
39200004
HS6-37P1Z
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
